Category: Air Compressor & Spares

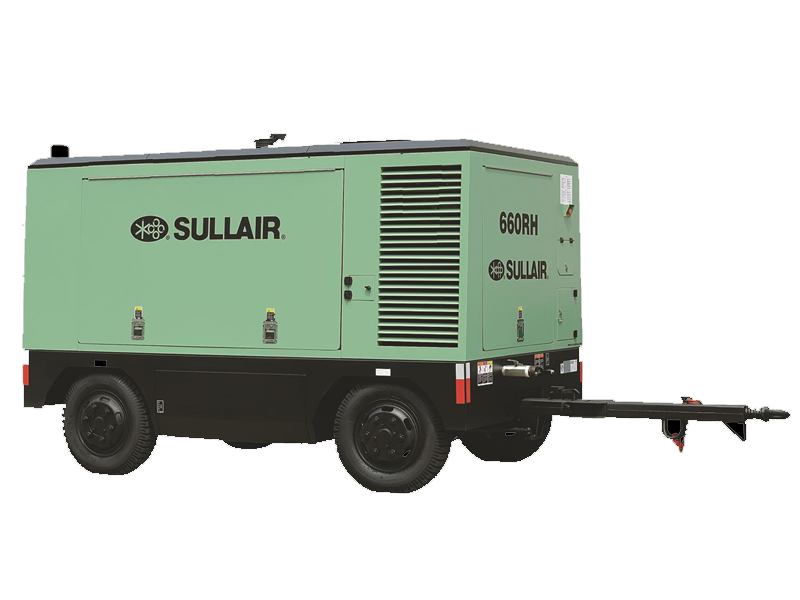

Sullair Compressor
Items | DPQ550RH | DPQ600RH | DWQ660RH | DWQ700 |
Working pressure | 17.2bar | 17.2bar | 20bar | 20bar |
Flow | 15.5m3/min (550cfm) | 17m3/min (600cfm) | 18.5m3/min(660cfm) | 19.6m3/min(700cfm) |
Fuel tank capacity | 375L | 375L | 400L | 400L |
Compressor oil capacity | 18 | 18 | 18L | 18L |
Engine maker | CUMMINS | CUMMINS | Cummins | Cummins |
Engine model | QSC-C240 | QSC-C260 | QSC8.3-C260-30 | QSC8.3-C260-30 |
Engine power | 179kW | 194kW | 194W | 194W |
Norminal engine speed | 1800rpm | 1850rpm | 1800rpm | 1800rpm |
Unloading engine speed | 1400rpm | 1400rpm | 8.3L | 8.3L |
Displacement | 8.3L | 8.3L | Water cooling | Water cooling |
Length | 4,560mm | 4,560mm | 3,850mm | 3,850mm |
Width | 2,150mm | 2,150mm | 1,950mm | 1,900mm |
Height | 2,170mm | 2,170mm | 2,388mm | 2,388mm |
Weight | 3,200kg | 3,200kg | 4,600kg | 4,600kg |
