RWLX-60 Crawler Mucking Loader

60 m3/h Mucking Loader

RWLX-60 Crawler Mucking LoaderThe RWLX-60 is is a high efficiency crawler mucking loader. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is ···

Category: Crawler Mucking Loader

RWLX-60 Crawler Mucking Loader

The RWLX-60 is is a high efficiency crawler mucking loader. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is suitable for roadways with a section above 2.2×2.2 meters.

Description

The RWLX-60 adopts electric full hydraulic transmission, including hydraulic walking,excavation collection,transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.

Advantages

-        Full hydraulic system powered by electric motor.

-        Dumping height and distance of conveyor can be custom design.

-        Special model for big slope tunnel, max. gradient of working is 32 degrees.

-        The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max fatigue strength.

-        The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality.

-        The mucking loader is controlled by hydraulic pedals and joysticks.

-        The “duck-mouth” dozer clean mucking face effectively thus eliminating the need of manual clean up.

-        The service brake is hydraulic in Doosan’s traveling motor.

-        Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch.

Technical data

Functional   Parameter

Loading Ability

60 m3/h

General Power

30 KW

Traveling Speed

1.1km/h

Speed of Scraper Chain

25 m/min

Scraper Chain

Single chain single motor

Adaptive Tunnel Slope

≤32°

Min. Turning Radius

≥4 m

Steering

Hydraulic

Ground Pressure

≤0.1 Mpa

Working Pressure

22Mpa

Dimension

Transportation Size (LxWxH)

6750*1600*1650mm

Operating Length

7300mm

Operating Width

1600mm

Operating Height

1800mm

Weight

Total Weight

7800kg

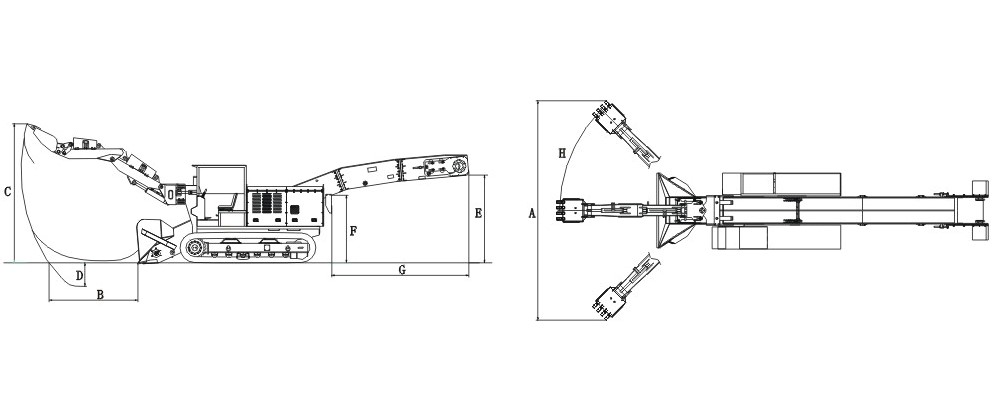

Working Range Drawing


Working   Range

A Digging Width

3100mm

B Digging Distance

1530mm

C Digging Height

2300mm

D Digging Depth Below Ground

500mm

E Dumping Height

1400mm(Variable)

F Min Dumping Height

1350mm(Variable)

G Dumping Distance

1600mm(Variable)

H Max Boom Angle

±35°

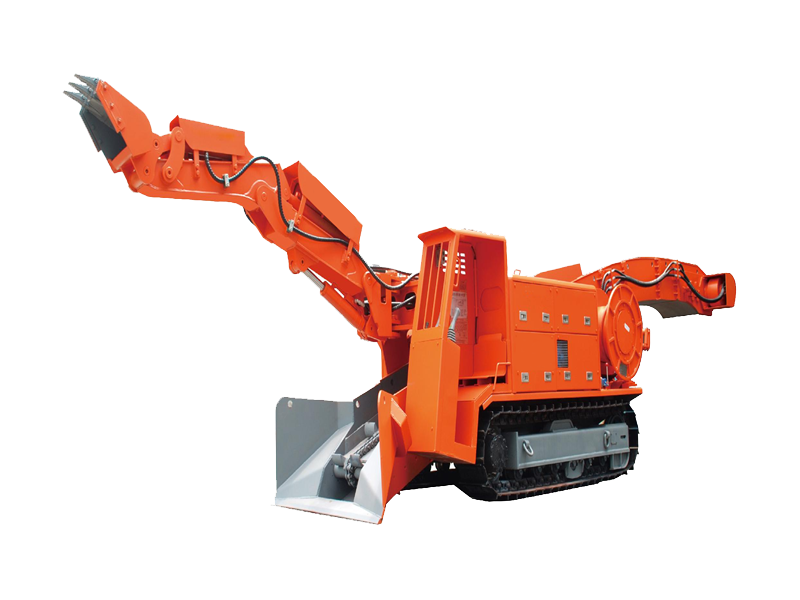

RWLX-60 Photo
