RWLX-120 Crawler Mucking Loader
RWLX-120 Crawler Mucking LoaderThe RWLX-120 is a high efficiency crawler mucking loader. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is s···
Category: Crawler Mucking Loader
RWLX-120 Crawler Mucking Loader
The RWLX-120 is a high efficiency crawler mucking loader. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is suitable for roadways with a section above 3×3 meters.
Description
The RWLX-120 adopts electric full hydraulic transmission, including hydraulic walking, excavation collection, transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.
Advantages
- Full hydraulic system powered by electric motor.
- Dumping height and distance of conveyor can be custom design.
- Special model for big slope tunnel, max. gradient of working is 32 degrees.
- The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max fatigue strength.
- The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality.
- The mucking loader is controlled by hydraulic pedals and joysticks.
- The “duck-mouth” dozer clean mucking face effectively thus eliminating the need of manual clean up.
- The service brake is hydraulic in Doosan’s traveling motor.
- Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch.
Technical data
Functional Parameter | |
Loading Ability | 120 m3/h |
General Power | 55 KW |
Traveling Speed | 3.2km/h |
Speed of Scraper Chain | 34 m/min |
Scraper Chain | Double chain double motor |
Adaptive Tunnel Slope | ≤32° |
Min. Turning Radius | ≥6 m |
Steering | Hydraulic |
Ground Pressure | ≤0.1 Mpa |
Working Pressure | 32Mpa |
Dimension | |
Transportation Size (LxWxH) | 9200*2100*2350mm |
Operating Length | 11080mm |
Operating Width | 2100mm |
Operating Height | 2813mm |
Weight | |
Total Weight | 13600kg |

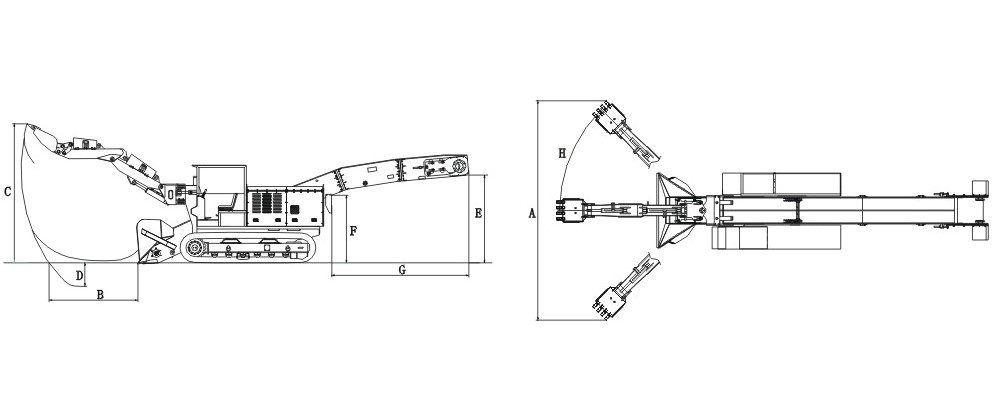

Working Range Drawing
Working Range | |
A Digging Width | 5900mm |
B Digging Distance | 2470mm |
C Digging Height | 3330mm |
D Digging Depth Below Ground | 800mm |
E Dumping Height | 2100mm(Variable) |
F Min Dumping Height | 1760mm(Variable) |
G Dumping Distance | 3170mm(Variable) |
H Max Boom Angle | ±55° |

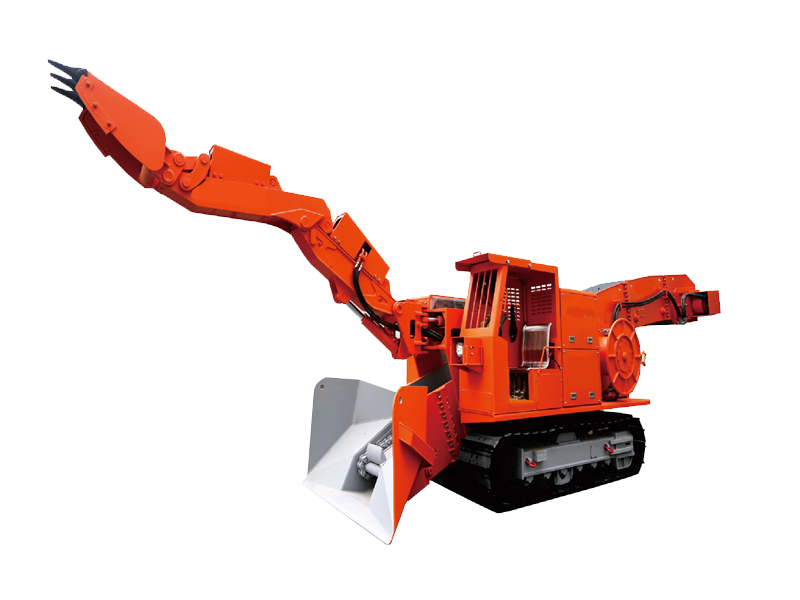

RWLX-120 Photo
