RW90 Surface Dump Truck

RW90 is off-highway mining dump truck with payload capacity of 60 tons used for open-pit mining.

Description

RW90 has been shaped after thousands of high-strength industrial examinations and tests at different construction sites and has incomparable adaptability to complex operating conditions when compared with traditional dump trucks.

Advantages

- The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity, good shock and twisting resistance.

- The transmission, specially developed for mining operations, is featured large torque output, and is more adaptive to harsh working conditions.

- By applying dual push rods, rubber shock blocks and adding leaf spring plates, the front suspension is greatly strengthened.

- Box-section stiffeners wedged to form a frame structure for the body, and abrasion resistant steel applied, better impact and abrasion resistance.

- Driver’s cab strengthened by roll-over protection structure, which is derived from excavator technique. The cab is optimized from all-around way, making it safe and comfortable.

RW90 Specifications

Model

RW90

Curb Weight (kg)

28000

Gross Weight (kg)

86000

Payload (kg)

58000

Body Volume (m³)

31

Truck Dimension (L*W*H) (mm)

8775x2558x3520

Wheelbase (mm)

3800+1500

Drive Mode

6×4

Min. Curving Radius (m)

≤11

Approach/Departure Angle

30/40°

Max. Speed (km/h)

65

Max. Gradeability  (%)

36

Engine Model

WD12.420

Engine Power (kW)

309

Gearbox

7DS200K

Tire

14.00-25

Axle Bearing Capacity (t)

19+37+37

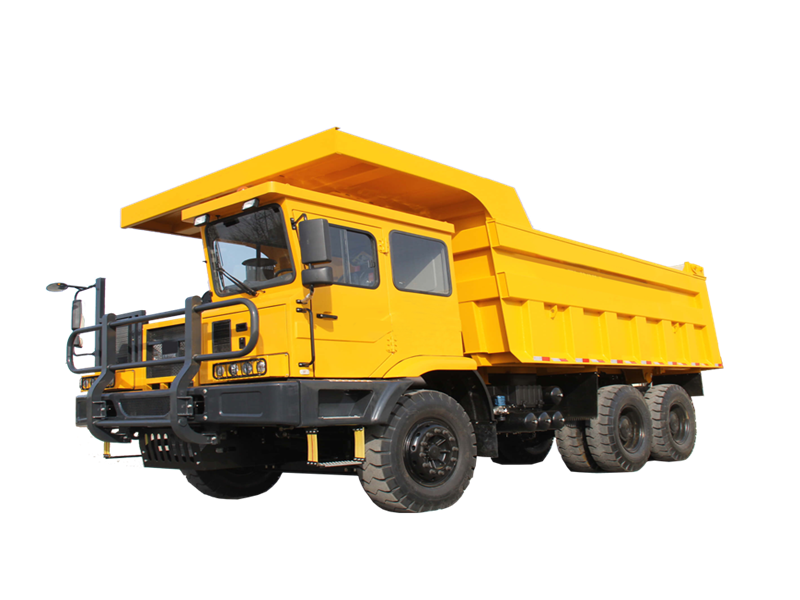

RW90 Photo
