RWTC76 Mining Drilling Jumbo

RWTC76 is a deep hole drilling jumbo with a hole range of 64-89mm in diameter and a 27+1 rod handler for drilling up to 35m hole depth.

Description

RWTC76 is equipped with 22U hydraulic rock drill, which delivers 22 kW of percussion power for high penetration rates and good rock tool service life in varying rock conditions.

RWTC76 is applicable to the mining operation of small and medium-sized metal mines, and the drilling diameter is Φ 64-89mm. It can drill upward or downward parallel holes and fan-shaped holes on the roof and sidewall, and the drilling depth can reach 35m. The positioning action of the whole machine adopts the electric control system, and the rock drill operation and anti sticking system adopts PLC computer control.

Advantages

-        Compact layout for good visibility and stability

-        Articulated heavy-duty carrier for stable and safe maneuvering

-        Powerful hydraulic rock drill and smooth controls for high drilling performance

-        Operating environment and automatic functions for safe, fast and accurate drilling

-        Protected service points are easy to access for quick maintenance

Key Features

Hole   Size

Փ64-89mm

Hole   Depth

35m

Rod   Length

1220mm

Drifter

22U

Drifter   Power

22kW

Engine   Power

74kW

Voltage

380V

Grade   Ability

14°

Transport   Length

19100mm

Transport   Width

2350mm

Transport   Height

3010mm

Total   Weight

16500kg

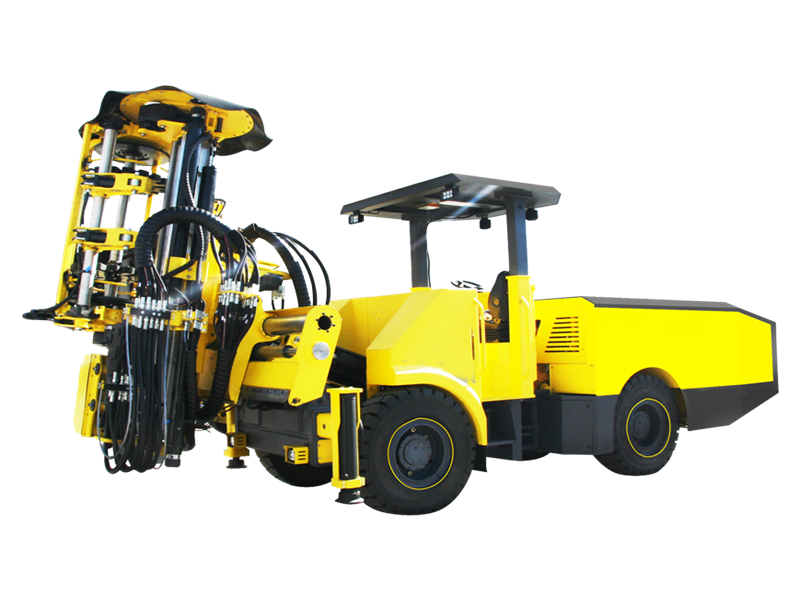

RWTC76 Photo
