RWSD200 Integrated Surface DTH Drilling Rig

RWSD200 is an efficient and energy-saving advanced drilling equipment specially developed for small and medium-sized open pit mining, quarry and infrastructure construction projects.

Description

RWSD200 uses Cummins engine as a single power, by both ends of the output at the same time to drive the screw compression system and hydraulic drive system, can drill φ152-230mm vertical, inclined and horizontal hole. This DTH drilling rig is mainly used to drill holes and pre-crack hole for open-pit mines and stonework project.

Spacious cab, high-power heating and air conditioning and high-quality audio equipment provides a high-quality operating environment, to maximize operator efficiency.

Advantages

- Has a strong climbing ability and adaptive to the rough pavement.

- Adapt to a wide range, can be furnished with various types of DTH impactor, can drill different diameter and different depth in variety of position and angle.

- Equipped with automatic unloading rod system and drill rod lubrication module, which can realize single operation and reduce mine operation personnel.

- Anti-jamming system, safety operation.

- Efficient dust collection system.

- Spacious cab, high-power heating and air conditioning and high-quality audio equipment provides a high-quality operating environment, to maximize operator efficiency.

- Crawler type undercarriage with track oscillation system.

RWSD200 Specifications

Transportation size(L*H*W)

9100*2450*3200

Weight

14500Kg

Rock hardness

f=6-20

Drilling diameter

90-125mm

Rod number

7+1

Hole depth

32m

Drilling rod specification

Φ76*4000 mm

Impactor

35A/45A

Engine

Cummins QSL8.9-C325-30

Clinder number

6

Output power

242KW/2200rpm

Hydraulic pump

5× Gear pump

Ground clearance

420mm

Track angle

10°up, 10°down

Driving speed

0-3Km/h

Gradeability

25°

Traction force

120KN

Torque

2800Nm

Rotating speed

0-120rpm

Boom lift

Up 47°, down 20°

Drilling boom swing angle

Right 50°, left 21°

Carriage angle

Right 95°, left 35°

Pitch angle of carriage

114°

Compensation stroke

1353mm

Propulsion machine stroke

4490mm

Maximum propulsion

32KN

Propulsion method

Roller chain

Screw air compressor

KAISHAN

Capacity

18m³/min

Working pressure

18Bar

Drive control system

Hydraulic pilot

Drilling control system

Hydraulic pilot

Prevent stuck

Automatic electro-hydraulic prevent stuck

Voltage

24V, DC

Safety cab

Meet the requirement ROPS & FOPS

Noise

Less than 85dB (A)

Seat

Adjustable

Air conditioning

Standard

Entertainment

Radio+Mp3

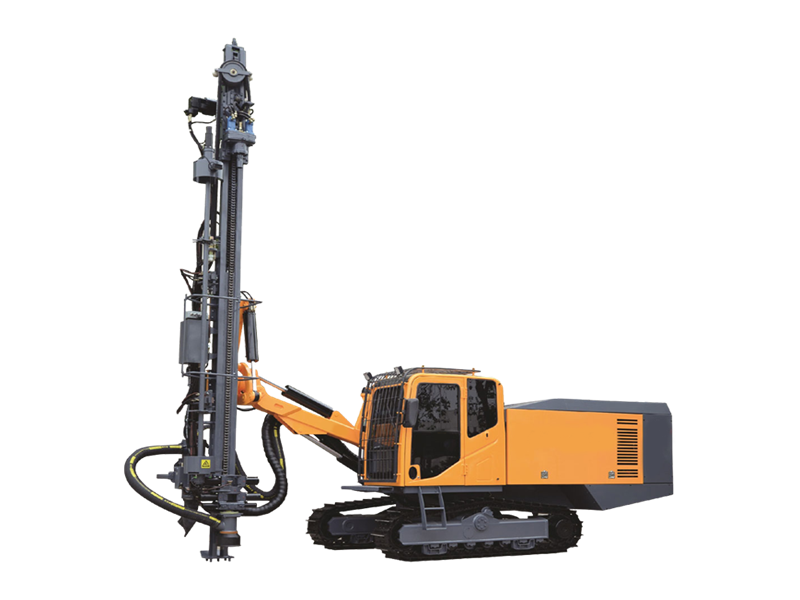

RWSD200 Photo
