RWSD150 Integrated Surface DTH Drilling Rig
RWSD150 Integrated Surface DTH Drilling RigRWSD150 is an efficient and energy-saving advanced drilling equipment specially developed for medium-sized open pit mining, quarry and infrastructure construction projects. Desc···
Category: Down The Hole Drill Rig
RWSD150 Integrated Surface DTH Drilling Rig
RWSD150 is an efficient and energy-saving advanced drilling equipment specially developed for medium-sized open pit mining, quarry and infrastructure construction projects.
Description
RWSD150 is driven by the Cummins China stage III diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. It is capable of drillingφ115-152mm vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes. The drill rig is equipped with the automatic rod handling system and lubricating module of drilling rod, resulting in one operator and fewer mining operations. The main control action is integrated to one handle, typical of user-friendliness. It is equipped with the anti-jamming system and optional drilling angle and depth indication are available, thus simplifying drilling and improving the drilling quality. The efficient dust-collecting system, spacious cab, high-powered air-conditioner and quality stereo system provide ideal conditions for operations, contributing to the highest working efficiency.
Advantages
- Has a strong climbing ability and adaptive to the rough pavement.
- Adapt to a wide range, can be furnished with various types of DTH impactor, can drill different diameter and different depth in variety of position and angle.
- Equipped with automatic unloading rod system and drill rod lubrication module, which can realize single operation and reduce mine operation personnel.
- Anti-jamming system, safety operation.
- Efficient dust collection system.
- Spacious cab, high-power heating and air conditioning and high-quality audio equipment provides a high-quality operating environment, to maximize operator efficiency.
RWSD150 Specifications
Operation parameter | Drilling range | mm | 115-152 |
Impactor | 4" & 5" | ||
Drill rod diameter | mm | 110 | |
Drill rod length | m | 8.5m×3 | |
Hole depth,max | m | 25 | |
Dust collection device | Dry-type | ||
Air compressor | Manufacturer | SULLAIR | |
Model | D660RH | ||
Working pressure | MPa | 2 | |
Displacement | m³/min | 18.5 | |
Power | kW/rpm | 194/1800 | |
Engine | Manufacturer | CUMMINS | |
Model | QSB4.5 | ||
Power | kW/rpm | 82/2200 | |
Fuel tank capacity | L | 600 | |
Feed | Feed beam length | mm | 11500 |
Feed Stroke | mm | 9000 | |
Feed extension | mm | 1800 | |
Feed rate, max | m/s | 0.8 | |
Feed force, max | kN | 40 | |
Forward tilting angle | ° | 90 | |
Travel capability | Traveling speed | km/h | 2 |
Traction force, max | kN | 125 | |
Gradeability | ° | 25 | |
Ground clearance | mm | 480 | |
Rotary | Rotary speed | rpm | 60 |
Rotary torque | Nm | 4000 | |
Diamension | Gross weight | T | 22 |
L×W×H Working | m | 7.5×4.2×12 | |
L×W×H Transportation | m | 12×3×3.2 |

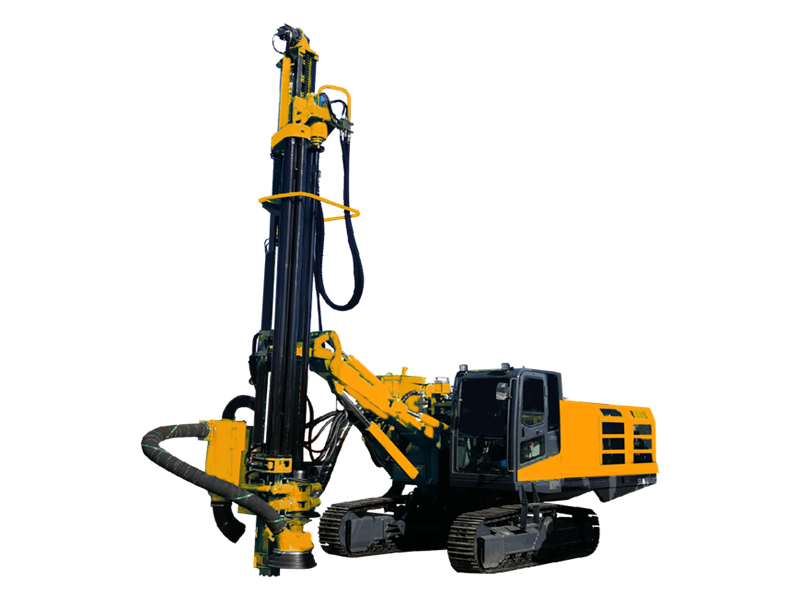

RWSD150 Photo
