RWST120H Surface TH Drilling Rig
RWST120H is a hydraulic, self-propelled, self-contained, crawler based surface drilling rig equipped with a cabin (F.O.P.S. and R.O.P.S.standard) and rod handling system.
Description
With compact structure, RWST120H is well integrated and easy to move. It is featured by energy conservation and efficiency, safety and environmental protection, flexibility, convenient operation, and stable performance, etc.
Advantages
- Telescopic boom structure and superior drilling coverage
- Efficient and economic drilling due to advanced drilling control system and robust drifter.
- More productivity due to high impact rate, percussison power and torque. i.e.
- Best drilling result with every operator, ergonomic and high quality cabin design.
- Easy access to all service points due to logical grouping and location of components.
- High quality engine and other main components with excellent coverage for service support.
RWST120H Specifications
Rock rigidity | f=6-20 |
Drilling diameter | 76-127mm |
Economic drilling depth | 25m |
Travel speed | 2.7Km/h |
Climbing capacity | 20° |
Ground clearance | 430mm |
Total Power | 179kW |
Diesel Engine | Cumins QSB 8.3 |
Capacity of screw compressor | 9.6m3/min |
Discharge pressure of screw compressor | 10bar |
Dimensions (long×width×high) | 9500×3680×2550mm |
Weight | 16100Kg |
Drifter Power | 20kW |
Rotary torque | 1765Nm |
Max. feed force | 20kN |
Boom collaring height | +1.4m/-3.2m |
Feed tilt | -6º / +108º |
Feed swing | -56º / +55º |
Feed length | 8000mm |
Drifter travel | 4510mm |
Shank | T45/T51 |
Drill rod length | 3660mm |
Dust catching method | Dry-type |

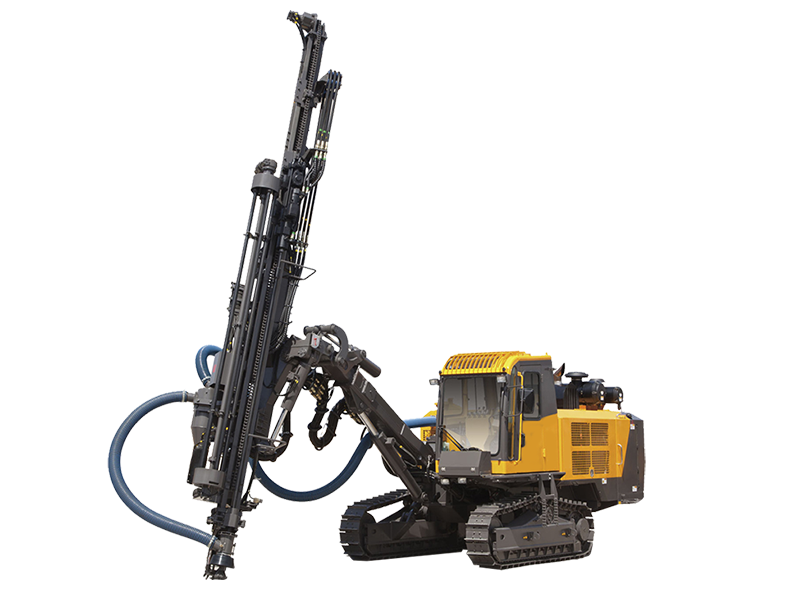

RWST120H Photo
