RWTJ45A-2 Tunnel Drilling Jumbo
RWTJ45A-2 is a compact and flexible double- boom electro-hydraulic jumbo for development drilling in tunneling construction in metal mine and underground engineering.
Description
RWTJ45A-2 is equipped with RC2000 hydraulic rock drill, which delivers 18 kW of percussion power for high penetration rates and good rock tool service life in varying rock conditions. Using a direct control drilling system, equipped with an excellent automatic function, anti sticking RPCF. The universal boom is fitted with ±180° feed rotation, automatic parallelism and a large and optimally shaped coverage, for fast and accurate face drilling and versatility.
RWTJ45A-2 is mounted on a 4-wheel drive frame-steered and diesel powered carrier, which features a FOPS standard safety canopy, and layout designed for good visibility and stability in tramming in small mining drifts and tunnels. The operating and maintenance interface are designed for easy access, safe operation and all service points are accessible from ground level.
Advantages
- Compact layout for good visibility and stability
- Articulated heavy-duty carrier for stable and safe maneuvering
- Powerful hydraulic rock drill and smooth controls for high drilling performance
- Operating environment and automatic functions for safe, fast and accurate drilling
- Protected service points are easy to access for quick maintenance
Key Features | |
Coverage area | 24 m² |
Rock drill | RC2000 |
Drilling Feed | 1250mm |
Boom | 1250mm |
Hole Length | 3370mm |
Hole Diameter | Փ43-76mm |
Transport Width | 2500mm |
Transport Height | 2638mm |
Transport Length | 15620mm |
Total Weight | 29400kg |
Drifter | |
Model | RC2000 |
Percussion Power | 18kw |
Percussion Frequency | 60Hz |
Percussion Pressure | 210bar |
Rotation Speed | 150-250rpm |
Rotation Torque | 590N.m |
Noise Level | 105dB |
Shank | T38/R38 |
Drilling Feed | |
Total Feed Length | 4850mm |
Rod Length | 3090-3700mm |
Feeding Force | 13kN |
Boom | |
Feeder compensation | 1250mm |
Feeder rotation | ±180° |
Feeder lifting | +95°/-10° |
Boom lifting | +53°/-30° |
Boom swinging | ±35° |
Hydraulic system | |
Hydraulic Pump | Variable pump |
Max. System Pressure | 230bar |
Tank Volume | 265L |
Control System | |
Direct Hydraulic Control System | Standard |
Auto Anti-jamming Mechanism | Standard |
Air System | |
Air Compressor Power | 11kW |
Max. Displacement | 25L/s |
Water System | |
Booster Water Pump | CDL8-16 |
Max. Flow | 160L/min |
Min. Intake Pressure | 2bar |
Electrical System | |
Total Power | 123kW |
Main Motor Power | 55+55kW |
Voltage | 380V/1000V |
Frequency | 50HZ |
Motor Overload Protector | Standard |
Digital Voltage/ampere Meter | Standard |
Phase Sequence Indicator | Standard |
Charger | Standard |
Cable Reel | 70m |
Engine | |
Engine | WEICHAI WP4 1G140 |
Engine Power | 103kw |
Rated Torque | 550Nm |
Chassis | |
Articulated Turning Angle | ±35° |
Fixed Seat | Standard |
Hydraulic Power Steering System | Standard |
Fixed Front Wheel | Standard |
Swinging Rear Wheel | ±8° |
Traveling speed | <8km/h |
Electric System | |
Eelectric system | 24V |
Storage Batteries | 12V,120Ah |
Traveling lamp | 6×70W |
Tyre | |
Tyre size | 16.00-25 |

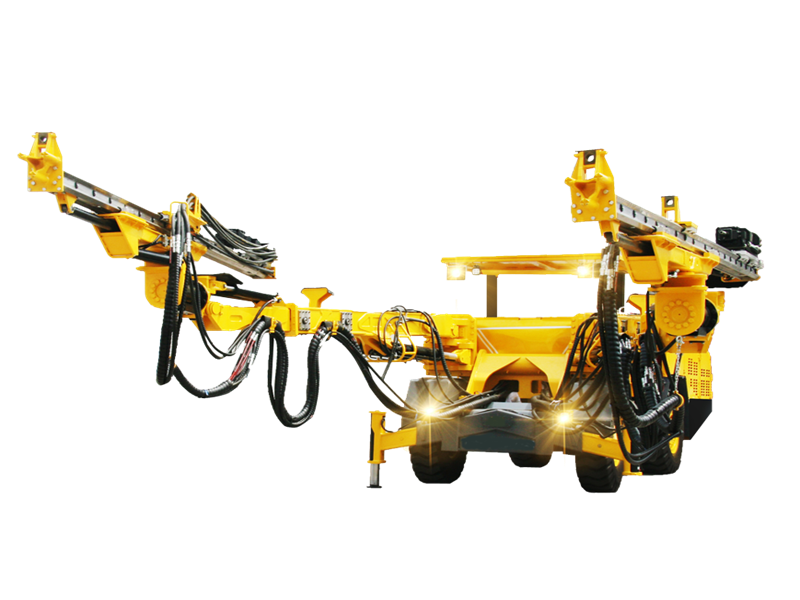

RWTJ45A-2 Photo
