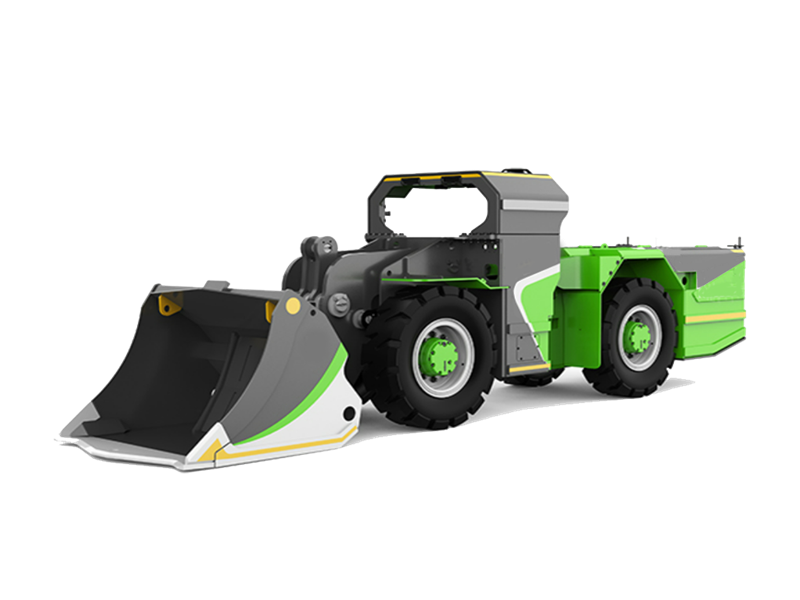

WJB-1 Underground Battery Loader

The WJB-1 is a new compact and lightweight 1m³ (2 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. WJB-1 adopts full battery drive, zero pollution, low noise, ergonomic design, simple and comfortable product operation, especially suitable for underground shovel loading operation.

Description

The WJB-1 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJB-1 adopts high-quality synchronous permanent magnet motor to directly drive the axle, the transmission system is simple and efficient, and the reliability of the power system is significantly improved. The operation and maintenance of the whole machine is simple, and the energy consumption and operation cost of spare parts are greatly reduced.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Battery drive, zero pollution, low noise

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

2000kg

Bucket Size

1 m³

Breakout Force

57kN

Traction Force

62kN

Speed

0~ 20 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

6045*1358*1946mm

Max Lift Height

2960mm

Max Unloading Height

1000mm

 Ground Clearance

230mm

Inner Turning Radius

2251mm

Outer Turning Radius

4085mm

Weight

Operation Weight

8500kg

Laden Weight

10500kg

Front Axle (Empty)

3100kg

Rear Axle (Empty)

5400kg

Front Axle (Laden)

5100KG

Performance

Speed

0~20km/h

Boom Raising Time

≤4.0s

Boom Lowering Time

≤2.0s

Dumping Time

≤3.5s

Oscilation Angle

±8°

Battery

Battery type

Lithium iron phosphate

Battery Power

64kWh /100kWh

Protection Level

IP67

Voltage

538V

Electric   Motor

Model

UD100+UD032

Engine Power

60+30kW

Protection Level

IP67

Axle

Front Axle

C200F

Front Axle Type

No-Spin

Rear Axle

C200R

Rear Axle Type

Rigid   planetary axle

Tyre

Type size

9.00-20


WJB-1 Photo
