WJB-3.5 Underground Battery Loader

7 tons Battery LHD

WJB-3.5 Underground Battery LoaderThe WJB-3.5 is a new compact 3.5m³ (7 ton) capacity Load Haul Dump (LHD). Best payload to own weight ratio in its class. WJB-3.5 adopts full battery drive, zero pollution, low noise, erg···

Category: Underground Battery Loader

WJB-3.5 Underground Battery Loader

The WJB-3.5 is a new compact 3.5m³ (7 ton) capacity Load Haul Dump (LHD). Best payload to own weight ratio in its class. WJB-3.5 adopts full battery drive, zero pollution, low noise, ergonomic design, simple and comfortable product operation, especially suitable for underground shovel loading operation.

Description

The WJB-3.5 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJB-3.5 adopts high-quality synchronous permanent magnet motor to directly drive the axle, the transmission system is simple and efficient, and the reliability of the power system is significantly improved. The operation and maintenance of the whole machine is simple, and the energy consumption and operation cost of spare parts are greatly reduced.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Battery drive, zero pollution, low noise

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

7000kg

Bucket Size

3.5 m³

Breakout Force

142kN

Traction Force

175kN

Speed

0~ 20km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

8570*2175*2116mm

Max Lift Height

3985mm

Max Unloading Height

1743mm

 Ground Clearance

316mm

Inner Turning Radius

3578mm

Outer Turning Radius

6308mm

Weight

Operation Weight

16000kg

Laden Weight

23000kg

Performance

Speed

0~20km/h

Boom Raising Time

≤7.2s

Boom Lowering Time

≤4.7s

Dumping Time

≤6.0s

Oscilation Angle

±8°

Battery

Battery type

Lithium iron phosphate

Battery Power


Protection Level

IP67

Voltage

538V

Electric   Motor

Model

DM2100+UD1700

Engine Power

80+100kW

Protection Level

IP67

Axle

Front Axle

KESSLER 91

Front Axle Type

POSI-TORO

Rear Axle

KESSLER 101

Rear   Axle Type

POSI-TORO

Tyre

Type size

17.5-25

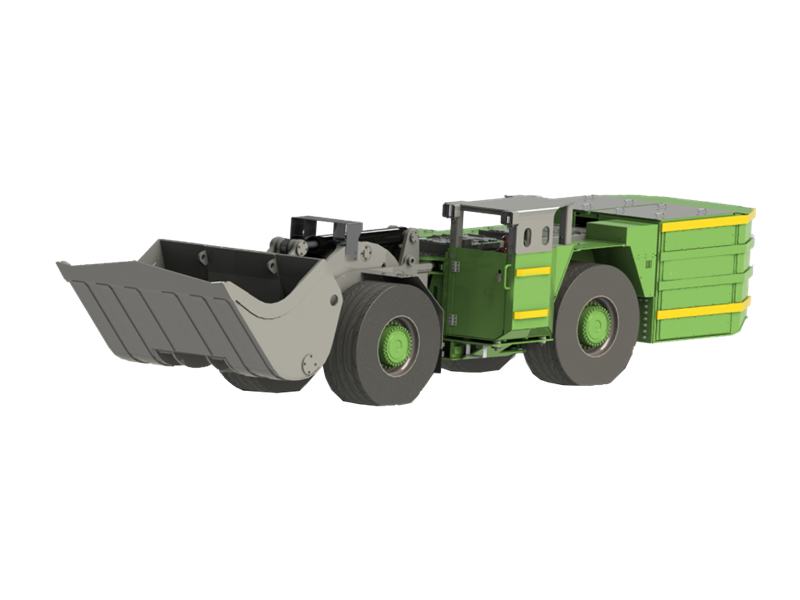

WJB-3.5 Photo
