UK-6 Underground Dump Truck
The UK-6 is a new compact and lightweight 6 tons capacity diesel dump truck for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.
Description
The UK-6 is mainly developed for narrow vein mining. The frames are articulated in the center, the steering angle is large, the turning radius is small. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations.
The UK-6 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.
Advantages
- Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne
- Improved powertrain results in higher penetration rates and better loading efficiency
- Higher payloads boost productivity and reduce lifecycle costs
- Ground-level daily maintenance enables safer servicing
Technical data
Capacity | |
Load Capacity | 6000kg |
Box Size | 3 m³ |
Traction Force | 60kN |
Speed | 0~ 18.4 km/h |
Climing Ability(Laden) | 20° |
Dimension | |
Tramming Size (LxWxH) | 5600*1500*1600mm |
Box Height | 1560mm |
Max Unloading Height | 2735mm |
Ground Clearance | 240mm |
Inner Turning Radius | 3410mm |
Outer Turning Radius | 5180mm |
Weight | |
Operation Weight | 6200kg |
Laden Weight | 12200kg |
Front Axle (Empty) | 2500kg |
Rear Axle (Empty) | 3700kg |
Performance | |
Speed | 0~18.4km/h |
Gear | 3 Gears |
Engine | |
Engine | Deutz BF4L914 |
Engine Power | 66kw / 2300rpm |
Engine Type | Air-Cool |
Cylinders | 4 In line |
Displacement | 4.314L |
Max Torque | |
Emission | EURO II / Tier 2 |
Transmission | |
Type | DANA |
Torque Converter & Gear box | DANA |
Axle | |
Front Axle | MERITOR / MEITONG |
Rear Axle | MERITOR / MEITONG |
Tyre | |
Tyre size | 10.00-20 |

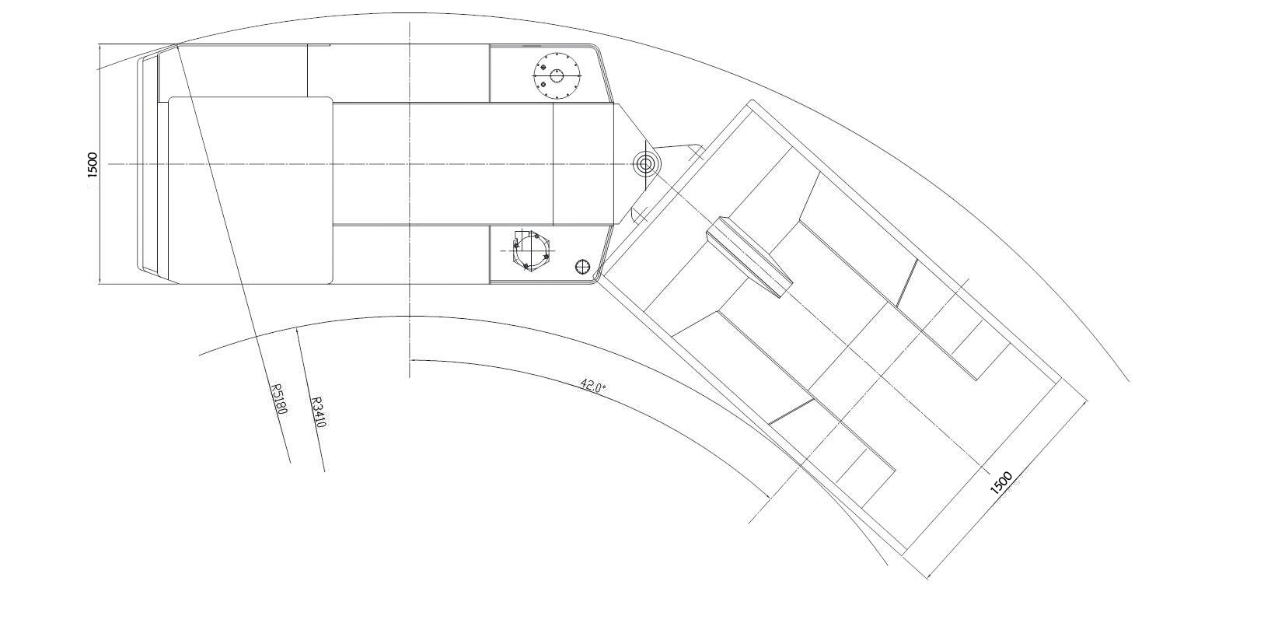

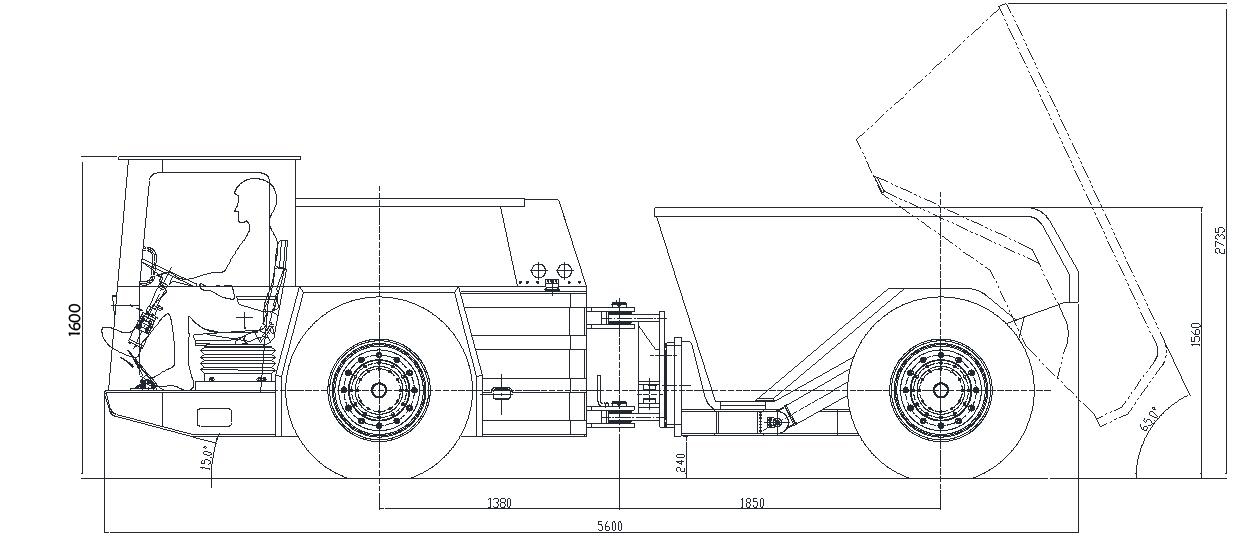

Dimension Drawing

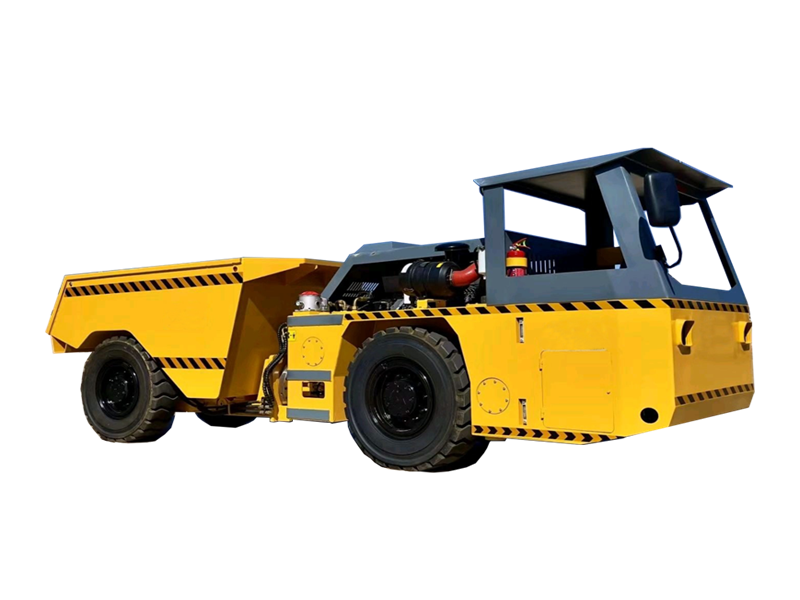

UK-6 Photo
