UK-12 Underground Dump Truck

The UK-12 is a new compact 12 tons capacity diesel dump truck for underground mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in mining operations.

Description

The UK-12 is mainly developed for narrow vein mining. The frames are articulated in the center, the steering angle is large, the turning radius is small. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations.

The UK-12 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

-       DEUTZ BF4M1013EC Power system, water-cooled, and turbocharged engine.

-       DANA Transmission system, hydraulic torque converter and power-shift gearbox, which is easy to operate and stable to operate.

-       Spring brake and hydraulic release in the brake system, which is safe and reliable.

Technical data

Capacity

Load Capacity

12000kg

Box Size

6 m³

Traction Force

128kN

Speed

0~ 23.7 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

7920*1920*2180mm

Box Height

1895mm

Max Unloading Height

4248mm

 Ground Clearance

265mm

Inner Turning Radius

4700mm

Outer Turning Radius

7400mm

Weight

Operation Weight

11070kg

Laden Weight

23070kg

Front Axle (Empty)

6000kg

Rear Axle (Empty)

5070kg

Performance

Speed

0~23.7km/h

Gear

4 Gears

Engine

Engine

Deutz BF4M1013EC

Engine Power

115kw / 2300rpm

Engine Type

Air-Cool

Cylinders

4 In line

Displacement

4.764L

Max Torque


Emission

EURO II / Tier 2

Transmission

Type

DANA

Torque Converter & Gear box

DANA

Axle

Front Axle

MERITOR / MEITONG

Rear Axle

MERITOR / MEITONG

Tyre

Tyre size

14.00-24

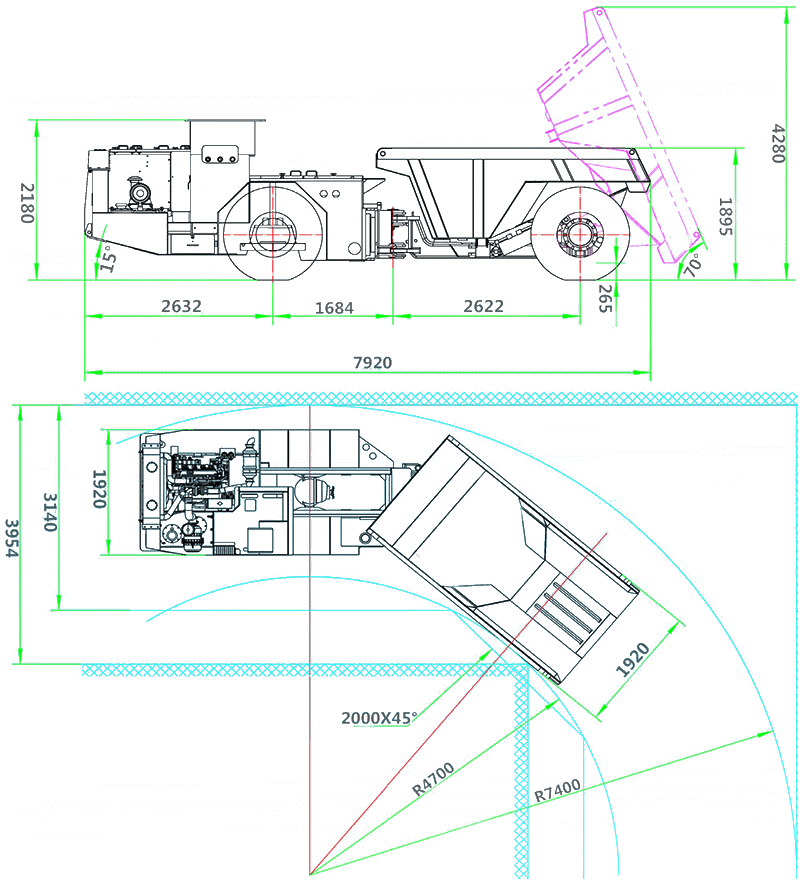

Dimension Drawing

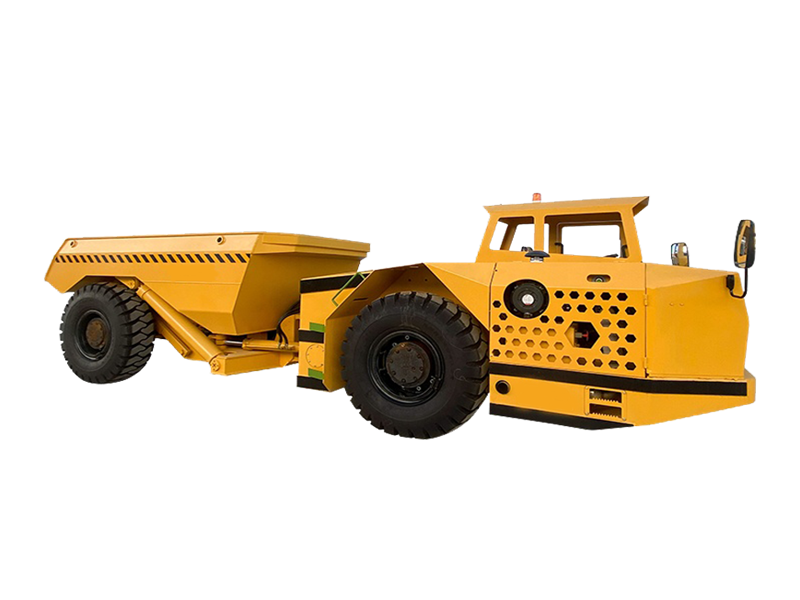

UK-12 Photo
