WJD-1 Underground Electric Loader

The WJD-1 is a new compact and lightweight 1m³ (2 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.

Description

The WJD-1 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJD-1 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

2000kg

Bucket Size

1 m³

Breakout Force

45kN

Traction Force

50kN

Speed

0~ 8 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

6170*1300*2000mm

Max Lift Height

3250mm

Max Unloading Height

1050mm

 Ground Clearance

220mm

Inner Turning Radius

2540mm

Outer Turning Radius

4260mm

Weight

Operation Weight

7000kg

Laden Weight

9000kg

Front Axle (Empty)

2100kg

Rear Axle (Empty)

4900kg

Front Axle (Laden)

4100KG

Performance

Speed

0~8km/h

Boom Raising Time

≤3.8s

Boom Lowering Time

≤2.5s

Dumping Time

≤1.8s

Oscilation Angle

±8°

Electric   Motor

Model

Y225M-4

Engine Power

45kw / 1480rpm

Protection Level

IP44

No. Of Poles

4

Efficiency

92.5%

Voltage

220/380/440 V

Transmission

Type

Hydrostatic of forward & reverse

Pump

PV22

Motor

MV23

Transfer Case

RW-1

Axle

Front Axle

RW-15-B

Front Axle Type

NO-SPIN

Rear Axle

RW-15-B

Rear Axle Type

ANTI-SLIP

Tyre

Tyre size

10.00-20

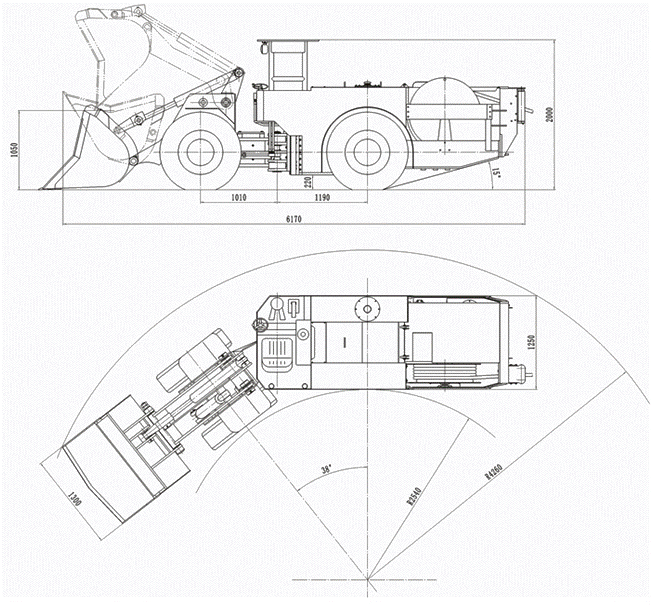

Dimension Drawing

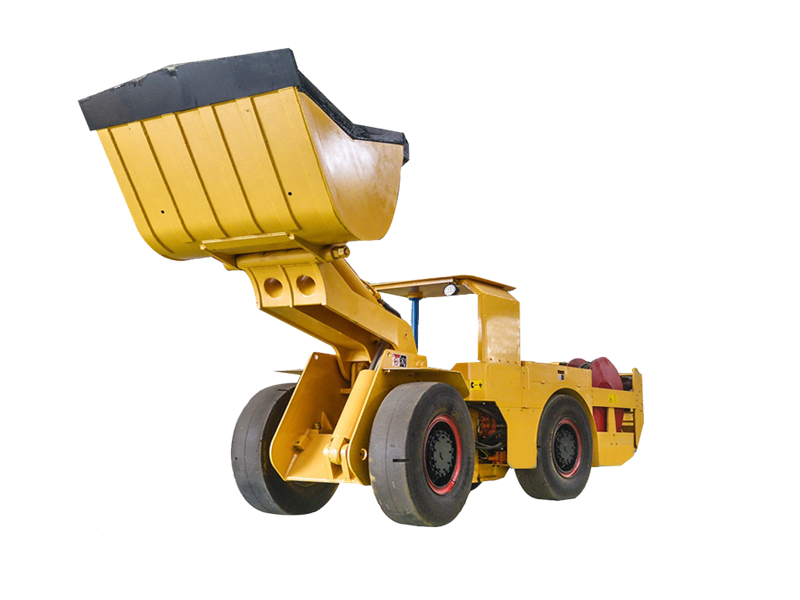

WJD-1 Photo
