RWHY-2 Full Hydraulic Portable Drilling Rig

RWHY-2 is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique.

Description

RWHY-2 consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc. The rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assemblability and disassemblability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.

Advantages

- Full Hydraulic and Drill Head model. The drill head rotation is realized with four hydraulic pumps driven by two diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.

- With Good dismantlability. The rig is adopted split type in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space for drilling of hole at 45°90° with stronger adaptability.

- Strong techniques adaptability. Besides diamond drilling with wire line coring technique, it is in strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other stratum.

RWHY-2 Specifications

Diesel   Engine

Model

 YC2108

Power

33Kw   (44HP) ×2

Rated   RPM(Factory setting)

2400rpm/min

Drilling   Capacity

BQ

500m(1640ft)

NQ

350m(1148ft)

HQ

120m(393ft)

Drill   Head

RPM

Two   Shifts/ Stepless Change 0-1200 RPM

Max.   Torque

900   N·m(666lbf·ft)

Max.   Lifting capacity of Spindle

50   kN(11000 lbf)

Max.   Feeding Power

25 kN(5500 lbf)

Primary   Pump

Hydraulic   pump
  Axial Piston variable displacement Triplex pump

1st Pump67LPM at 25MPa
  2nd Pump
43LPM   at 20MPa
  3rd Pump
  30 LPM at 20MPa
  4rd Pump
  7 LPM at 20MPa

Main   Hoist

Hoisting   force (single wire)

20kN(4400lbf)   (bare drum)

Hoisting   Speed (single wire)

84-165m/min (bare   drum)

Steel   Wire Diameter

14 mm(0.55 inch)

Steel   Wire Length

30   m(98.42feet)

Wireline   Hoist

Hoisting   Force (single wire)

800 Kg(1760lb)   (bare drum)

Hoisting   Speed (single wire)

96-255m/min (bare   drum)

Steel   Wire Diameter

6 mm(0.23 inch)

Steel   Wire Length

500   m(1640 feet)

Mast

Mast   Height

5 m(16.4 feet)

Mast   Adjusting Angle

0°—90°

Drilling   Angle

45º off horizontal   to 90ºvertical down

Rod Pull

1.5m

Feeding   Stroke

1800   mm(5.9ft)

Mud Pump

Type

Reciprocating   pump Triplex Plunger

Model

BW100

Others

Weight   (platform type)

1500   Kg(3306 lb)

Dimensions   (L×W×H)

3500×1500×1300mm
  (11.48×4.92×4.26ft)

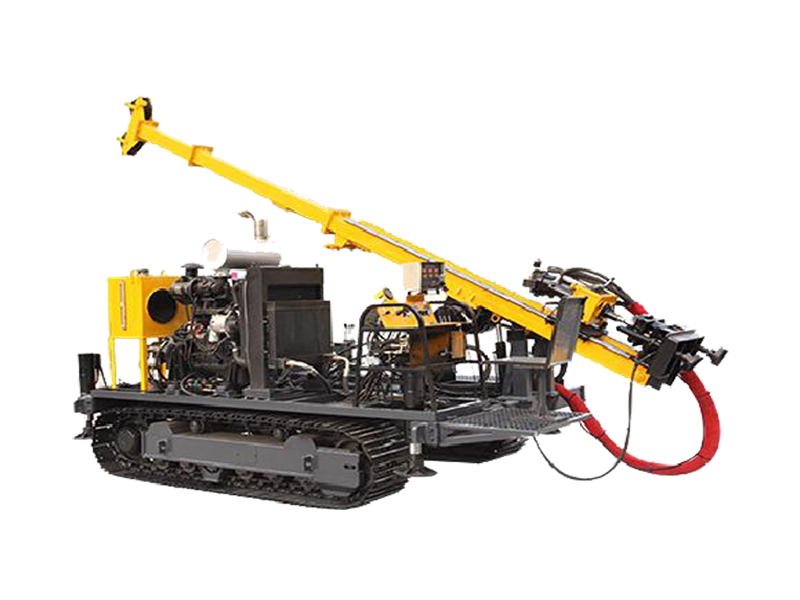

RWHY-2 Photo
