RWHY-4 Full Hydraulic Portable Drilling Rig
RWHY-4 Full Hydraulic Portable Drilling RigRWHY-4 is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique. ···
Category: Core Drill Rig
RWHY-4 Full Hydraulic Portable Drilling Rig
RWHY-4 is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique.
Description
RWHY-4 is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.
The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
Advantages
- Full Hydraulic and Drill Head model.
- With Good dismantlability.
- Strong techniques adaptability.
RWHY-4 Specifications
Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
Displacement | 5.9L (1.56 US Gallons) | |
Power | 132Kw (180HP) | |
Rated RPM(Factory setting) | 2200rpm | |
Drilling Capacity | BQ | 1000m(3280feet) |
NQ | 700m(2296 feet) | |
HQ | 500m(1640 feet) | |
PQ | 300m(984 feet) | |
Drill Head | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
Max. Torque | 4200 N·m(3108lbf·ft) | |
Hold Diameter | 98mm(3.85 inch) | |
Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
Max. Feeding Power | 60 kN(13480 lbf) | |
Primary Pump | Hydraulic pump | 1st Pump：140LPM at 30MPa |
Hydraulic Tank | Capacity | 310 L (82 US Gallons) |
Main Hoist | Hoisting force (single wire) | 57kN(12814 lbf) (bare drum) |
Hoisting Speed (single wire) | 38-40m/min (bare drum) | |
Steel Wire Diameter | 16 mm(0.62 inch) | |
Steel Wire Length | 50 m(164 feet) | |
Wireline Hoist | Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) |
Hoisting Speed (single wire) | 130-400m/min (bare drum) | |
Steel Wire Diameter | 6 mm(0.23 inch) | |
Steel Wire Length | 1000 m(3280 feet) | |
Mast | Mast Height | 9 m(29.52 feet) |
Mast Adjusting Angle | 0°—90° | |
Drilling Angle | 45º off horizontal to 90ºvertical down | |
Feed Pull | 15000kg(33075 lb) | |
Feed Thrust | 6000kg(13230 lb) | |
Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
Feeding Stroke | 3500 mm(11.48ft) | |
Slippage Stroke | 1100 mm(3.6ft) | |
Mud Pump | Type | Reciprocating pump Triplex Plunger |
Model | BW160/10 | |
Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) |
Others | Weight (platform type) | 9300 Kg(20506 lb) |
Dimensions (L×W×H) | 5100×2200×2450mm | |
Transport Way | Crawler |

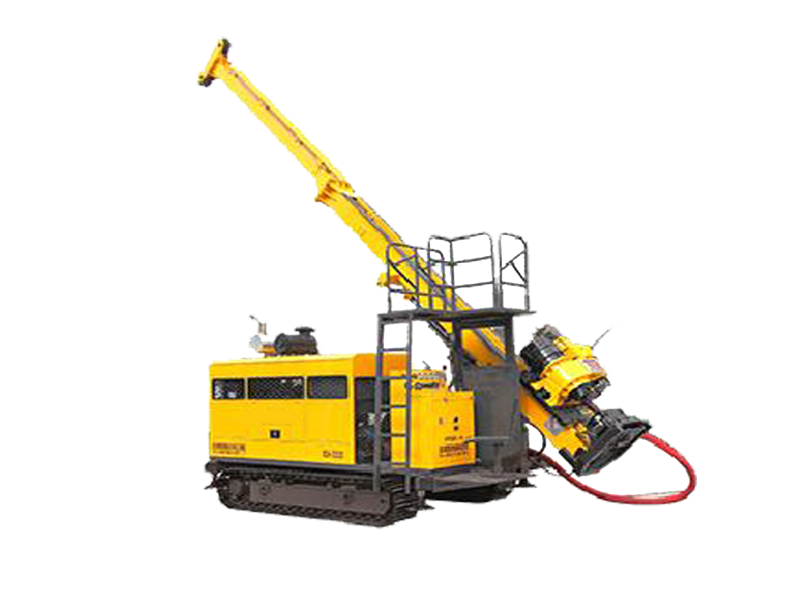

RWHY-4 Photo
