RWHY-5 Full Hydraulic Portable Drilling Rig
RWHY-5 Full Hydraulic Portable Drilling RigRWHY-5 is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for othe···
Category: Core Drill Rig
RWHY-5 Full Hydraulic Portable Drilling Rig
RWHY-5 is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Description
RWHY-5 adopts full hydraulic driving, travelling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.
Advantages
- Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
- High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
- Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
- Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level.
With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
RWHY-5 Specifications
Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
Displacement | 8.3L (2.19 US Gallons) | |
Power | 145kW (195HP) | |
Rated RPM(Factory setting) | 2200rpm | |
Drilling Capacity | BQ | 1500 m(4920 feet) |
NQ | 1300 m(4264 feet) | |
HQ | 1000 m(3280 feet) | |
PQ | 680 m(2230 feet) | |
Drill Head | Rotation Motor | Double Hydraulic Motors –variable and Reversible |
RPM | Two Shifts/ Stepless Change 0-1145 RPM | |
Ratios | 1st 8.776:1 | |
Head Opener | sidewise sliding way with hydraulic drive | |
Max. Torque | 4650 N·m(3427 lbf·ft) | |
Hold Diameter | 121 mm(4.76 inch) | |
Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
Max. Feeding Power | 75 kN(16860 lbf) | |
Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. | Maker: DANFOSS |
Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
Main Hoist | Hoisting Speed (single wire) | 44m/min(bare drum) |
Hoisting force (single wire) | 77kN(17310 lbf) | |
Steel Wire Diameter | 18 mm(0.71 inch) | |
Steel Wire Length | 60 m(196.85 feet) | |
Wireline Hoist | Hoisting Speed (single wire) | 100m/min (bare drum) |
Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) | |
Steel Wire Diameter | 6 mm(0.24 inch) | |
Steel Wire Length | 1500 m(4920 feet) | |
Mast | Mast Height | 11.2 m(37.74 feet) |
Mast Adjusting Angle | 0°—90° | |
Drilling Angle | 45°—90° | |
Feeding Stroke | 3800 mm(150 inch) | |
Slippage Stroke | 1100 mm(43.3 inch) | |
Feed Pull | 15000kg(33075 lb) | |
Feed Thrust | 7500kg(16538 lb) | |
Mud Pump | Type | Reciprocating Pump Triplex Plunger |
Model | BW250 | |
Stroke | 100mm(3.9 inch) | |
Output volume | 250,145, 90, 52 L/min | |
Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa | |
Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.18-4.63 inch) |
Other | Weight | 13000 Kg(28665 lb) |
Dimensions (L × W ×H ) | 6250×2240×2750mm | |
Transport Way | Steel Crawler |

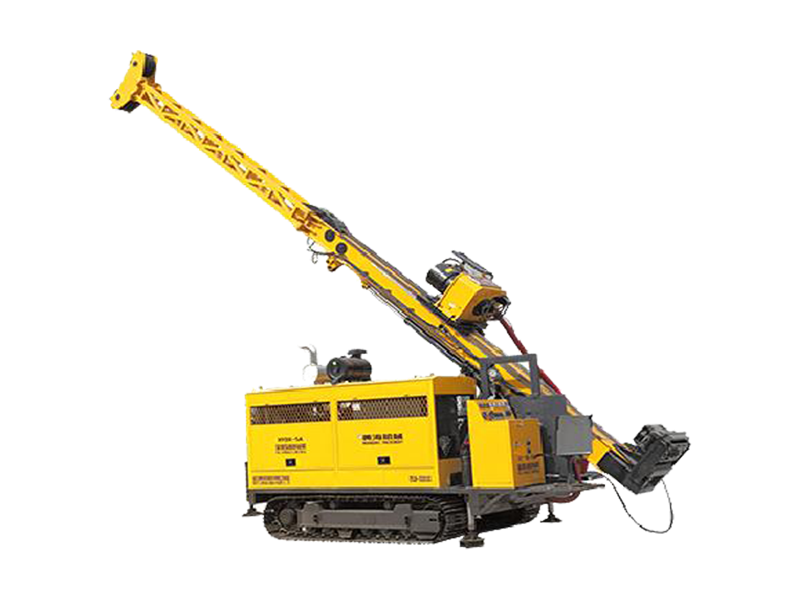

RWHY-5 Photo
