RWHY-6 Full Hydraulic Portable Drilling Rig

RWHY-6 is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.

Description

RWHY-6 equipped with tracks, has a hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And it provides the operators with a convenient and comfortable working circumstance with a wide view. In short, the rig has a beautiful outline and shows a people-oriented design idea.

RWHY-6 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system. All these factors have made the rig the best choice among the same products in both domestic and abroad markets.



Advantages

-        Reliable Quality

The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.

-        High Efficiency

Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet) drilling rod guarantee the high operation efficiency of the rig.

-        Environmental Protection

The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.

-        Energy Saving

The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge to the minimum extent.

RWHY-6 Specifications

Diesel   Engine

Model

Cummins   6CTA (turbocharged and charge water cooled)

Displacement

8.3L   (2.19 US Gallons)

Power

179kW   (240HP)

Rated   RPM(Factory setting)

2200rpm

Drilling   Capacity

BQ

2000   m(6560 feet)

NQ

1600   m(5248 feet)

HQ

1300   m(4264 feet)

PQ

1000   m(3280 feet)

Drill   Head

Rotation   Motor

Double   Hydraulic Motor
  -variable and Reversible
  Maker: SAUER-DANFOSS

RPM

Two   Shifts/ Stepless Change 0-1100 RPM

Ratios

1st        8.776:1
  2nd      2.716:1

Head   Opener

sidewise   sliding way with hydraulic drive

Max.   Torque

6400   N·m(4717 lbf·ft)

Hold   Diameter

121   mm(4.76 inch)

Max.   Lifting capacity of Spindle

220   kN(49456 lbf)

Max.   Feeding Power

110   kN(24728 lbf)

Primary   Pump

Hydraulic   pump:
  Axial Piston variable displacement Triplex pump for driving of   rotator, winch mud pump & leveling jacks.
  With load sensing system.

Maker:    DANFOSS
  1st Pump
200LPM   at 32MPa
  2nd Pump
120LPM   at 28MPa
  3rd Pump
  120 LPM at 28MPa

Hydraulic   Tank

Capacity

420 L   (111 US Gallons)

Main   Hoist

Hoisting   Speed (single wire)

44m/min(bare   drum)

Hoisting   force (single wire)

120kN(26976   lbf)

Steel   Wire Diameter

22 mm(0.86 inch)

Steel   Wire Length

60   m(196.85 feet)

Wireline Hoist

Hoisting   Force (single wire)

15   kN(3372 lbf) (bare drum)

Steel   Wire Diameter

6   mm(0.24 inch)

Steel   Wire Length

2000   m(6560 feet)

Mast

Mast   Height

11.2 m(37.74 feet)

Mast   Adjusting Angle

0°—90°

Drilling   Angle

45º off   horizontal to 90ºvertical down

Feeding   Stroke

3800   mm(150 inch)

Slippage   Stroke

1100   mm(43.3 inch)

Feed   Pull

22000kg(48510 lb)

Feed   Thrust

11000kg(24255 lb)

Mud Pump

Type

Reciprocating   Pump Triplex Plunger

Model

BW320

Stroke

110mm(4.3   inch)

Output   volume

320,230,165,118   L/min
  (84.5, 61, 44, 31 US Gallons/min)

Discharge   pressure

4.0, 5.0, 6.0, 8.0 Mpa
  (580, 725, 870, 1160 psi)

Foot   Clamp

Clamping   Scope

55.5-117.5   mm(2.18-4.63 inch)
  through hole Ф154mm(6.06 inch)

Others

Weight

14000   Kg(30864 lb)

Transport   Dimensions (L × W ×H )

6250×2240×2750mm
  (20.5×7.34×9.02 ft)

Transport   Way

Steel   Crawler

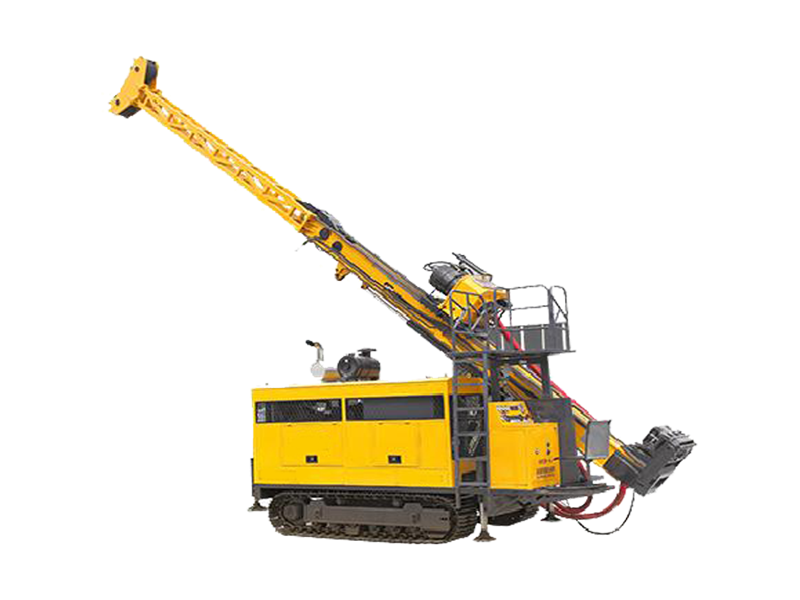

RWHY-6 Photo
