RWHY-8 Full Hydraulic Portable Drilling Rig
RWHY-8 Full Hydraulic Portable Drilling RigRWHY-8 is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for othe···
Category: Core Drill Rig
RWHY-8 Full Hydraulic Portable Drilling Rig
RWHY-8 is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Description
RWHY-8 is wire-line coring, and at the same time has the unique top drive function. The maximum torque is 7200 Nm (5307 lbf ft), which will be much more suitable for large dia. drilling in coal bed methane, hydrology and water well. According to many years of experience in HDD field, our engineers install clamp and shackle device on the rig to relieve labor intensity, improve drilling efficiency and guarantee operator's safety..
HCR-8 is excellent in performance, high in working efficiency, easy for operation and keep the operators from dangers.
Advantages
- Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
- High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode.
- Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination, which makes the rig proper to be operated in urban areas.
- Energy Saving
The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge to the minimum extent.
RWHY-8 Specifications
Power Unit | Power | 276 kW (370HP) at 2100 r/min |
Drilling Capacity | NQ | 3000m(9840 feet) |
HQ | 2400 m(7872 feet) | |
PQ | 1700 m(5576 feet) | |
Drill Head | RPM of Spindle | Three Shifts/ Stepless ChangeThree 0-1250 RPM |
Max. Torque of Spindle | 7200 Nm(5307 lbf·ft) at 170 rpm | |
1300 Nm(958 lbf·ft) at 1250 rpm | ||
Spindle Diameter | 121 mm(4.76 inch) | |
Max. Lifting capacity of Spindle | 295 kN(66316 lbf) | |
Max. Feeding Power | 152 kN(34170 lbf) | |
Main Hoist | Hoisting force (single wire) | 120kN(26976 lbf) |
Steel Wire Diameter | 22mm(0.86 inch) | |
Steel Wire Length | 100 m(328feet) | |
Wireline Hoist | Hoisting Force (single wire) | 15 kN(3372 lbf) (bare drum) |
Steel Wire Diameter | 6.3 mm(0.25 inch) | |
Steel Wire Length | 2800 m(9184 feet) | |
Mast | Effective Hoisting Height | 9.6 m(31.5 feet) |
Mast Adjusting Angle | 0°—90° | |
Drilling Angle | 45º off horizontal to 90ºvertical down | |
Feeding Stroke | 4700 mm(185 inch) | |
Slippage Stroke | 1100 mm(43 inch) | |
Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.19-4.63 inch) |
Mud Pump | Type | Reciprocating Pump Triplex Plunger |
Model | BW320 | |
Stroke | 110mm(4.3 inch) | |
Output volume | 320,230,165,118 L/min | |
Discharge pressure | 4.0, 5.0, 6.0, 8.0 Mpa | |
Others | Weight | 25000 Kg (55125 lb) |
Transport Dimensions (L × W ×H ) | 8300×2400×3260mm |

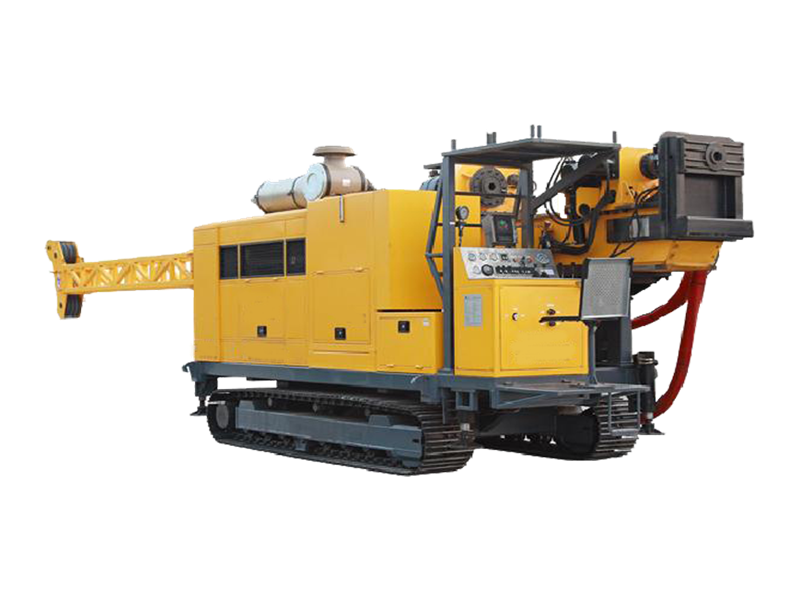

RWHY-8 Photo
