RWXY-9 Core Drilling Rig
RWXY-9 is mainly used in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine's gallery ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
Description
RWXY-9 is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and suitable in the range of rotation speed. Equipped with water brake, the rig is in normal-open clutch mechanism. The hoist is in low-position operation for its lifting and stopping and other advantages.
Advantages
- Powerful Drill Head.
- With Good dismantlability.
- Strong techniques adaptability.
RWXY-9 Specifications
Drilling depth------------------------------------------------------------------------------ 2000~4000m (6560~13120feet)
Spindle dia---------------------------------------------------------------------------------- 118mm (4.65inch)
Spindle speed (rpm) ------------------ Positive: 73; 94; 132; 207; 333;209; 267; 376; 589; 949
Negative: 69; 198
Spindle torque ----------Positive: 18088; 14150; 10044; 6417; 3986N·m(13330; 10429; 7402; 4729; 2938 lbf·ft) 6364; 4978; 3534; 2258; 1402 N·m(4690; 3669; 2605; 1664; 1033 lbf·ft)
Negative: 19109; 6723 N·m(14083; 4955 lbf·ft)
Hexagonal kelly----------------Φ114x102mm (Φ4.49x4.02inch); Φ89x79 mm(Φ3.5x3.11inch)
Dia of drill rod-------------------------------------Φ102 Φ89 Φ71 mm(Φ4.02 Φ3.5 Φ2.8 inch)
Spindle stroke---------------------------------------------------------------------------1200mm(47.2inch)
Sliding stroke of drill rig---------------------------------------------------------------- 800mm(31.5inch)
Max. Lifting force----------------------------------------------------------------------- 643KN(144546 lbf)
Max. Pressurizing force-------------------------------------------------------------- 339KN(76207 inch)
Winding Drum capacity-------------------------------------------------------------------350m(1148 feet)
Steel wire dia. ----------------------------------------------------------------------------- 26mm(1.02 inch)
Max. Single-wire hoisting force (the third layer) -------------------------------- 150KN(33720 lbf)
Single-wire lifting speed of hoist--------------------------------------0.75; 0.96; 1.35; 2.12; 3.4 m/s
(2.46; 3.15; 4.43; 6.95; 11.15feet/m)
Drilling angle (without vertical arm) ------------------------------------------------------78°-90°
Dimensions( with motor )----------------------------5730x2040x3400mm(225.6x80.3x134inch)
Weight (with electric motor) --------------------------------------------- 17000KG(22491 lb)
Dimensions (with engine)-----------------------------6088x2040x3400mm(239.7x80.3x134inch)
Weight (with diesel engine) ---------------------------------------------- 17600KG(23814 lb)
Ⅲ. Power unit
Electric motor model------------------------------------------------------------------------------ Y315L1-4
Power -----------------------------------------------------------------------------------------160KW(215HP)
Rotating speed of electric motor---------------------------------------------------------------1480rpm
Diesel engine model---------------------------------------------------------------------- Cummins 6CTA
Power------------------------------------------------------------------------------------------178KW(240HP)
Rotating speed of diesel engine---------------------------------------------------------------- 2200rpm

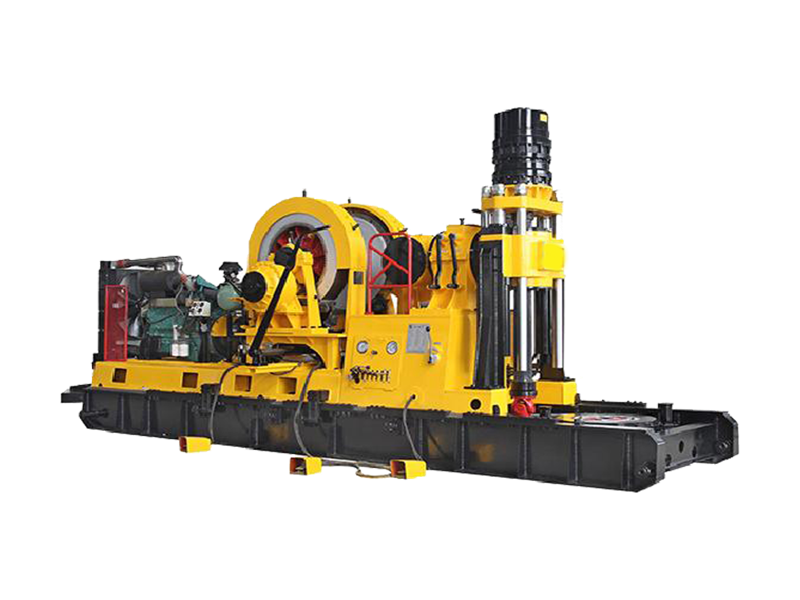

RWXY-9 Photo
