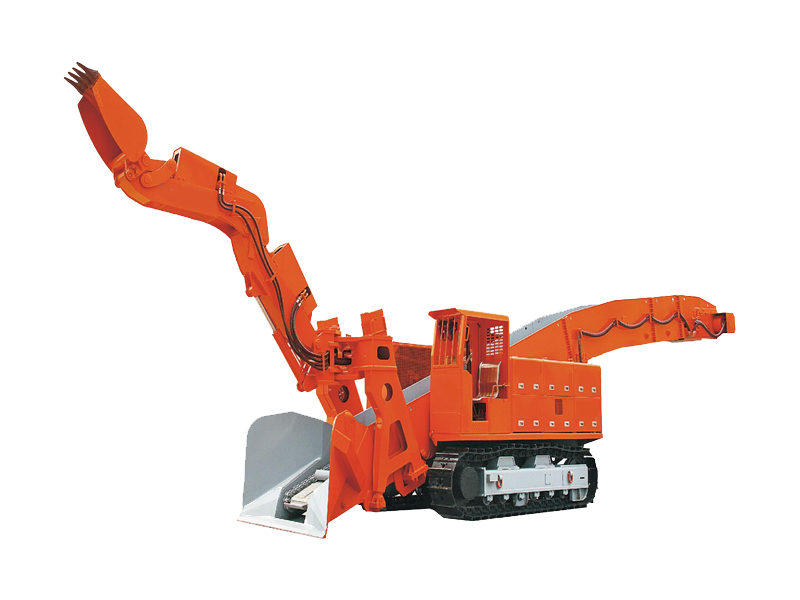

RWLX-220 Crawler Mucking Loader
RWLX-220 Crawler Mucking LoaderThe RWLX-220 is a high efficiency crawler mucking loader. It is mainly used for mining operations, such as coal mines, metal mines, non-metallic mines, hydropower tunnels, etc. It is suitab···
Category: Crawler Mucking Loader
RWLX-220 Crawler Mucking Loader
The RWLX-220 is a high efficiency crawler mucking loader. It is mainly used for mining operations, such as coal mines, metal mines, non-metallic mines, hydropower tunnels, etc. It is suitable for roadways with a section above 3.8×3.8 meters.
Description
The RWLX-220 adopts electric full hydraulic transmission, including hydraulic walking, excavation collection, transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.
Advantages
- Full hydraulic system powered by electric motor.
- Dumping height and distance of conveyor can be custom design.
- Special model for big slope tunnel, max. gradient of working is 32 degrees.
- The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max fatigue strength.
- The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality.
- The mucking loader adopts Electrohydraulic control system with reduced voltage start suitable for long tunnel project.
- The “duck-mouth” dozer clean mucking face effectively thus eliminating the need of manual clean up.
- Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch.
Technical data
Functional Parameter | |
Loading Ability | 220 m3/h |
General Power | 75 / 90 KW |
Traveling Speed | 2.0km/h |
Speed of Scraper Chain | 44 m/min |
Scraper Chain | Double chain double motor |
Adaptive Tunnel Slope | ≤32° |
Min. Turning Radius | ≥9m |
Steering | Hydraulic |
Ground Pressure | ≤0.1 Mpa |
Working Pressure | 32Mpa |
Dimension | |
Transportation Size (LxWxH) | 14900*2450*2700mm |
Operating Length | 15300mm |
Operating Width | 2450mm |
Operating Height | 3700mm |
Weight | |
Total Weight | 23800kg |
Working Range Drawing
Working Range | |
A Digging Width | 8550mm |
B Digging Distance | 3200mm |
C Digging Height | 4950mm |
D Digging Depth Below Ground | 1120mm |
E Dumping Height | 2750mm(Variable) |
F Min Dumping Height | 2100mm(Variable) |
G Dumping Distance | 5500mm(Variable) |
H Max Boom Angle | ±55° |
RWLX-220 Photo
About Rockway
Solid as a rock, Way of succeed
ROCKWAY is a global high-tech mining equipment supplier in China, support mining houses and contractors worldwide with mainly mining equipment & spare parts, such as Drilling Rig, Tunneling Drilling Jumbo, Mining Drilling Jumbo, Bolting Jumbo, Mucking Loader Underground Loader, Underground Dump Truck, Utility Vehicle, Tunnel & Construction equipment, Crushing & screening equipment and etc.
ROCKWAY is mainly engaged in the design, development, production, installation and training of underground mine equipment and ore processing equipment, spare parts supply and sales with many years experience.
ROCKWAY strictly control the quality and have quality supervision and inspection personnel in all aspects of production. After the completion of the machine, ROCKWAY will also have specialized inspection personnel to conduct a full range of inspections on the machinery, including whether parts and components are in place and whether all the functions of the machinery are normal.
ROCKWAY has a strong, established footprint in China, Russia , Peru, Chile, Mexico, India, Indonesia, Zambia, Congo RC, and South Africa with focused expansion into South East Asia and South America, as well as North America. Rockway will ensure to provide customers the most cost-effective and high performance products.
