RWLX-180 Crawler Mucking Loader

The RWLX-180 is a high efficiency crawler mucking loader. It is mainly used for mining operations, such as coal mines, metal mines, non-metallic mines, hydropower tunnels, etc. It is suitable for roadways with a section above 3.8×3.8 meters.

Description

The RWLX-180 adopts electric full hydraulic transmission, including hydraulic walking, excavation collection, transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.

Advantages

-        Full hydraulic system powered by electric motor.

-        Dumping height and distance of conveyor can be custom design.

-        Special model for big slope tunnel, max. gradient of working is 32 degrees.

-        The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max fatigue strength.

-        The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality.

-        The mucking loader adopts Electrohydraulic control system with reduced voltage start suitable for long tunnel project.

-        The “duck-mouth” dozer clean mucking face effectively thus eliminating the need of manual clean up.

-        Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch.

Technical data

Functional   Parameter

Loading Ability

180 m3/h

General Power

75 KW

Traveling Speed

2.0km/h

Speed of Scraper Chain

44 m/min

Scraper Chain

Double chain double motor

Adaptive Tunnel Slope

≤32°

Min. Turning Radius

≥8m

Steering

Hydraulic

Ground Pressure

≤0.1 Mpa

Working Pressure

32Mpa

Dimension

Transportation Size (LxWxH)

13088*2350*2500mm

Operating Length

14500mm

Operating Width

2350mm

Operating Height

3500mm

Weight

Total Weight

21500kg

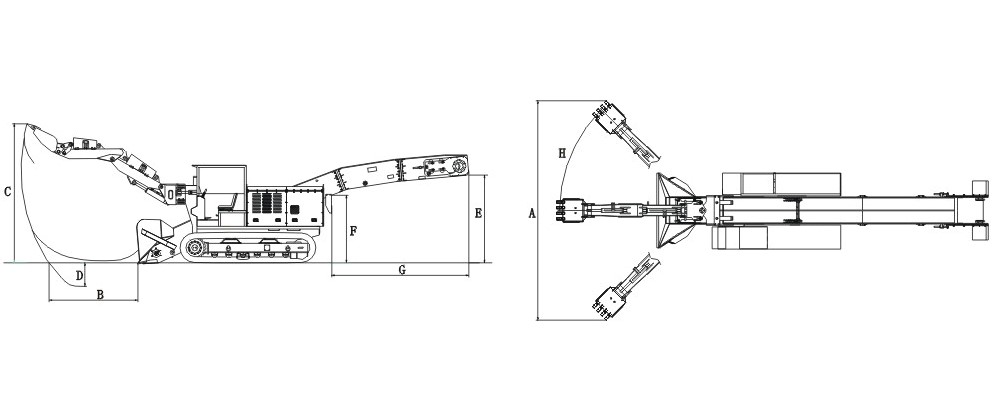

Working Range Drawing


Working   Range

A Digging Width

7030mm

B Digging Distance

3000mm

C Digging Height

4635mm

D Digging Depth Below Ground

990mm

E Dumping Height

2693mm(Variable)

F Min Dumping Height

1970mm(Variable)

G Dumping Distance

5123mm(Variable)

H Max Boom Angle

±55°

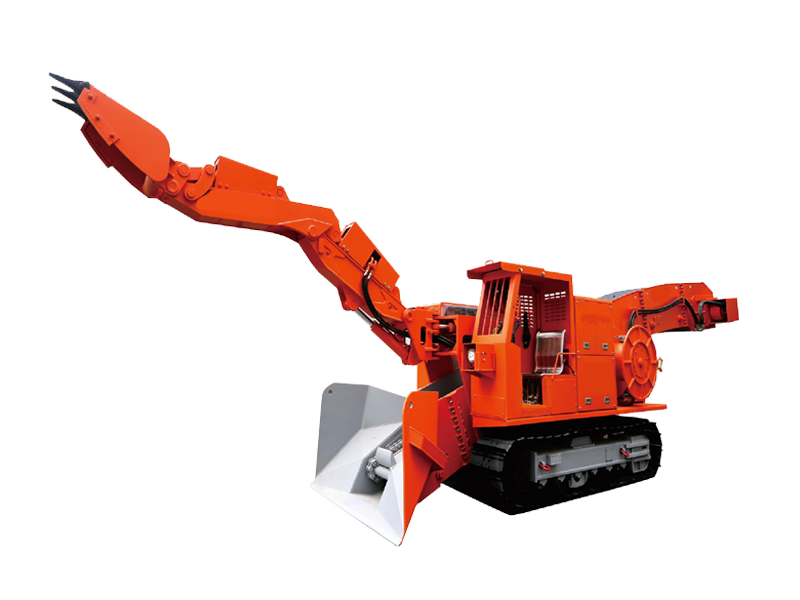

RWLX-180 Photo
