WJ-0.6 Underground Diesel Loader

The WJ-0.6 is a new compact and lightweight 0.6m³ (1.2 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.

Description

The WJ-0.6 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJ-0.6 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

1200kg

Bucket Size

0.6 m³

Breakout Force

35kN

Traction Force

40kN

Speed

0~ 8 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

5050*1150*1950mm

Max Lift Height

2600mm

Max Unloading Height

900mm

 Ground Clearance

220mm

Inner Turning Radius

1950mm

Outer Turning Radius

3400mm

Weight

Operation Weight

5135kg

Laden Weight

6335kg

Front Axle (Empty)

1780kg

Rear Axle (Empty)

3355kg

Front Axle (Laden)

3120KG

Performance

Speed

0~8km/h

Boom Raising Time

≤2.5s

Boom Lowering Time

≤1.8s

Dumping Time

≤2.1s

Oscilation Angle

±8°

Engine

Engine

Deutz BF4L2011

Engine Power

47.5kw / 2300rpm

Engine Type

Air-Cool & Turbocharge

Cylinders

4 In line

Displacement

3.11L

Max Torque

230Nm/1600rpm

Emission

EURO II / Tier 2

Transmission

Type

Hydrostatic of forward & reverse

Pump

PV22

Motor

MV23

Transfer Case

RW-1

Axle

Front Axle

RW-15-A

Front Axle Type

NO-SPIN

Rear Axle

RW-15-A

Rear Axle Type

ANTI-SLIP

Tyre

Type size

7.50-15

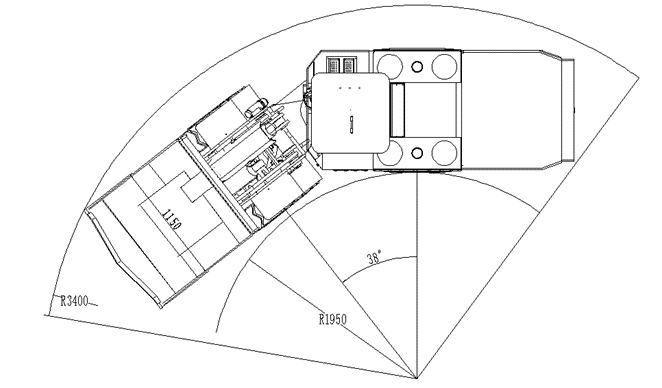

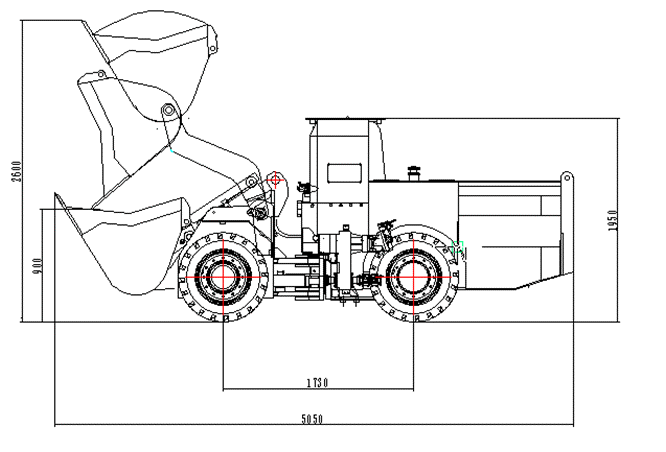

Dimension Drawing

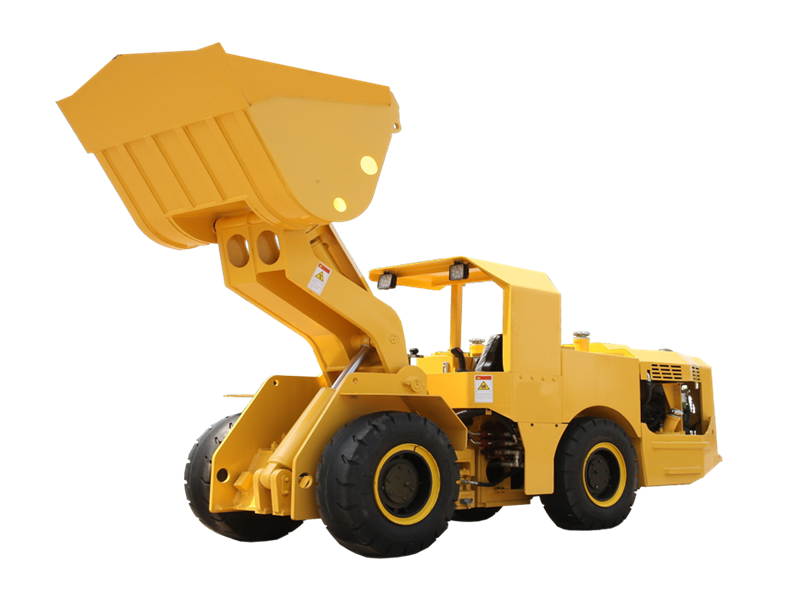

WJ-0.6 Photo
