WJ-1 Underground Diesel Loader

The WJ-1 is a new compact and lightweight 1m³ (2 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.

Description

The WJ-1 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJ-1 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

Technical data

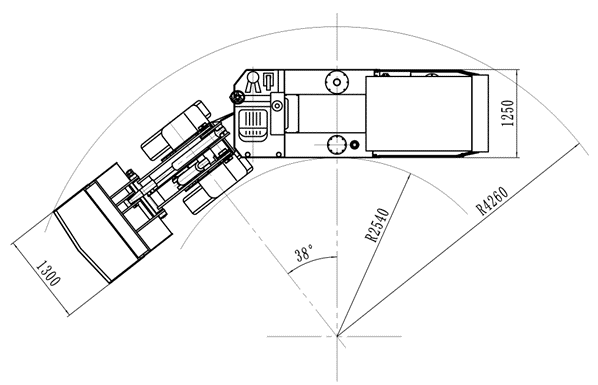

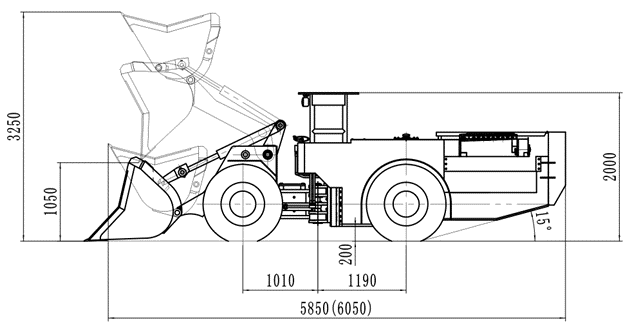

Dimension Drawing

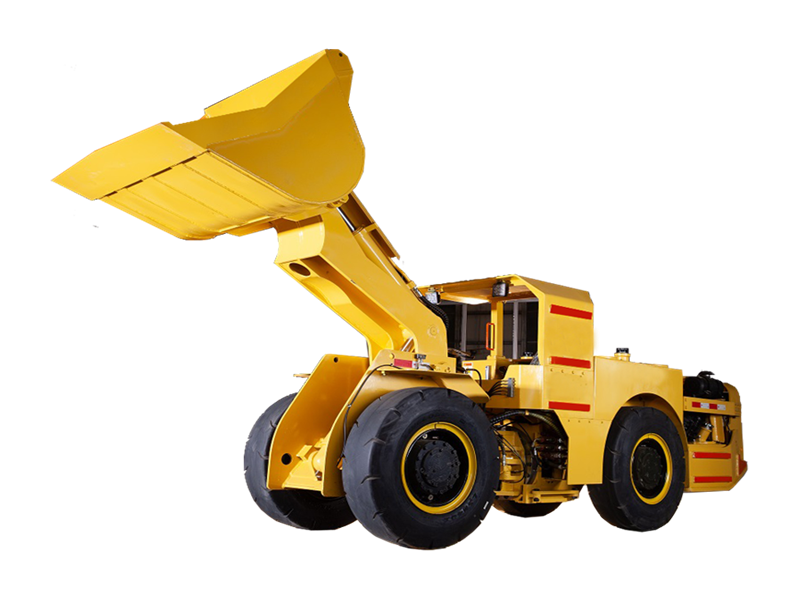

WJ-1 Photo
