WJ-2 Underground Diesel Loader

The WJ-2 is a new compact 2m³ (4 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.

Description

The WJ-2 is mainly developed for narrow vein mining. It offers reduced dilution, better flexibility, and operator safety while working in narrow vein operations. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJ-2 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

4000kg

Bucket Size

2 m³

Breakout Force

85kN

Traction Force

104kN

Speed

0~ 17.4 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

7000*1800*2080mm

Max Lift Height

3975mm

Max Unloading Height

1740mm

Ground Clearance

250mm

Inner Turning Radius

2650mm

Outer Turning Radius

4900mm

Weight

Operation Weight

13500kg

Laden Weight

17500kg

Front Axle (Empty)

5100kg

Rear Axle (Empty)

8400kg

Front Axle (Laden)

9100KG

Performance

Speed

0~17.4km/h

Boom Raising Time

≤6.3s

Boom Lowering Time

≤3.6s

Dumping Time

≤4.0s

Oscilation Angle

±8°

Engine

Engine

Deutz   F6L914 (BF4M1013EC option)

Engine Power

83kw / 2300rpm

Engine Type

Air-Cool & Turbocharge

Cylinders

6 In line

Displacement

6.47L

Max Torque


Emission

EURO II / Tier 2

Transmission

Torque Converter

DANA C270

Gear Box

RT32000

Axle

Front Axle

CMG CY-2J

Rear Axle

CMG   CY-2J

Tyre

Tyre size

12.00-24

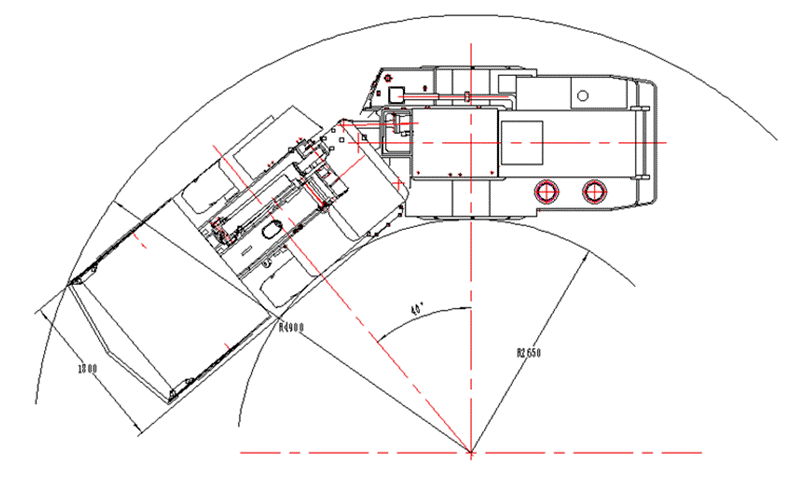

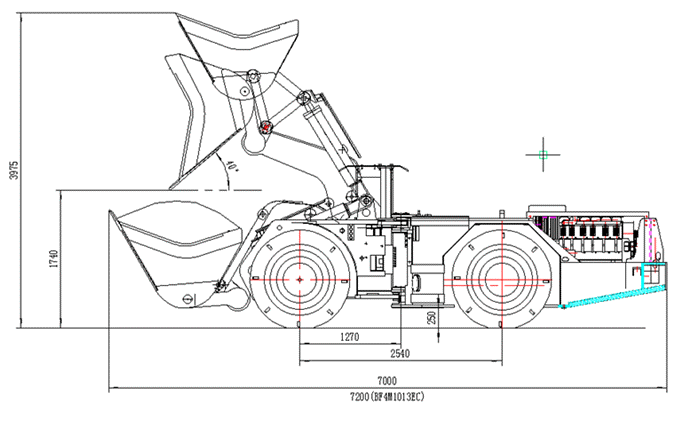

Dimension Drawing

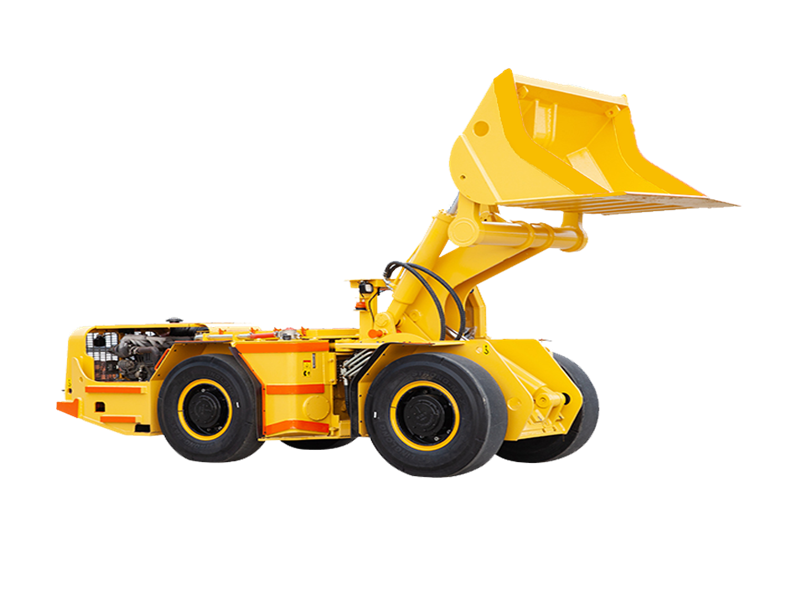

WJ-2 Photo
