WJ-2.5 Underground Diesel Loader

The WJ-2.5 is a new compact 2.5m³ (5 ton) capacity Load Haul Dump (LHD) for narrow vein mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in narrow vein operations.

Description

The WJ-2.5 is mainly developed for underground mining. It offers reduced dilution, better flexibility, and operator safety while working in development work, mining and tunnelling construction. Easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.

The WJ-2.5 is full of features to help mines maximize tonnes and minimize extraction costs. Engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Advantages

-       Operator's compartment in the rear frame improves operator safety and ergonomics

-       Reduced width and turning radius compared to other machines in the same size class enable lower cost per tonne

-       Improved powertrain results in higher penetration rates and better loading efficiency

-       Higher payloads boost productivity and reduce lifecycle costs

-       Ground-level daily maintenance enables safer servicing

Technical data

Capacity

Load Capacity

5000kg

Bucket Size

2.5 m³

Breakout Force

103kN

Traction Force

120kN

Speed

0~ 19.4 km/h

Climing Ability(Laden)

20°

Dimension

Tramming Size (LxWxH)

7200*1790*2010mm

Max Lift Height

4254mm

Max Unloading Height

1740mm

Ground Clearance

290mm

Inner Turning Radius

2850mm

Outer Turning Radius

5140mm

Weight

Operation Weight

14000kg

Laden Weight

19000kg

Front Axle (Empty)

6000kg

Rear Axle (Empty)

8000kg

Front Axle (Laden)

11000KG

Performance

Speed

0~19.4km/h

Boom Raising Time

≤5.0s

Boom Lowering Time

≤4.0s

Dumping Time

≤3.0s

Oscilation Angle

±8°

Engine

Engine

Cummins   QSB4.5 (Option Deutz TCD2013)

Engine Power

97kw / 2200rpm

Engine Type

Water-Cool & Turbocharge

Cylinders

4 In line

Displacement

4.5L

Max Torque


Emission

EURO III / Tier 3

Transmission

Torque Converter

RW-15 (Option DANA C273)

Gear Box

RW-13    (Option DANA R32000)

Axle

Front Axle

MEITONG CY2F

Rear Axle

MEITONG CY2F

Tyre

Tyre size

12.00-24

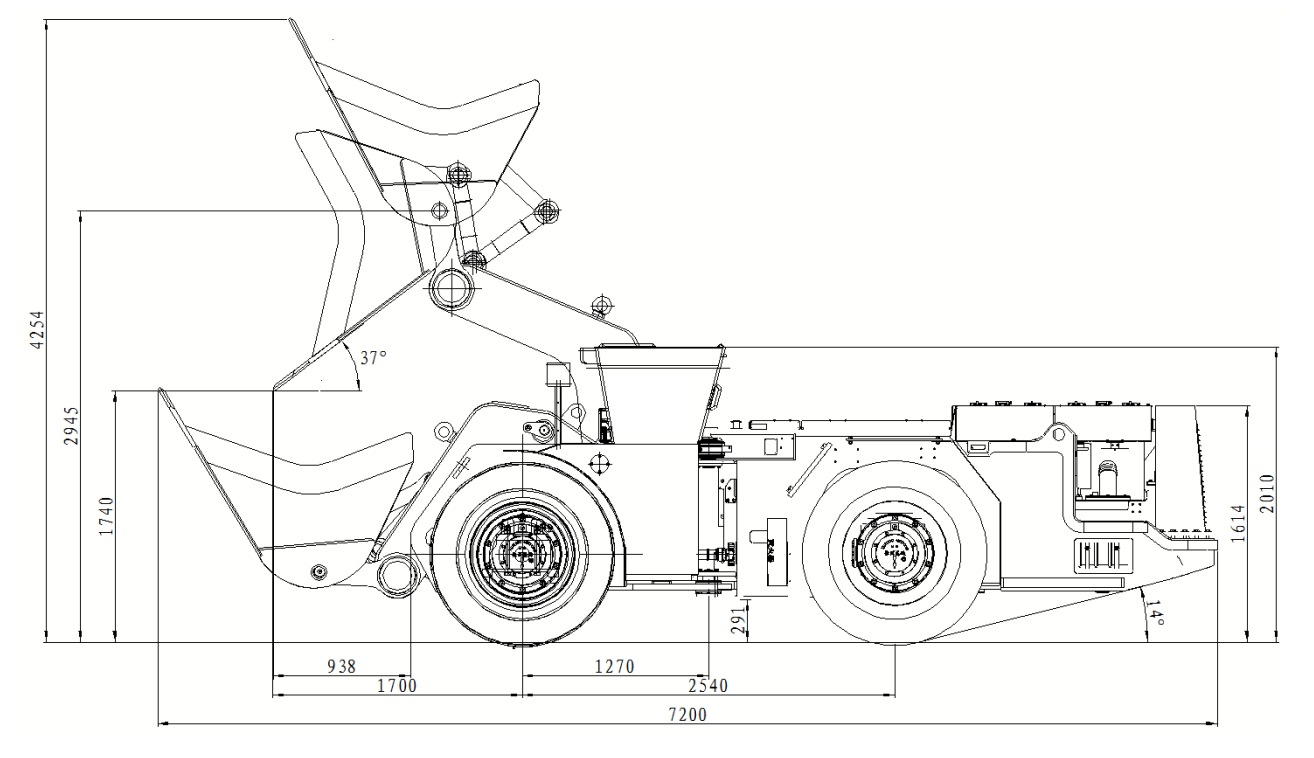

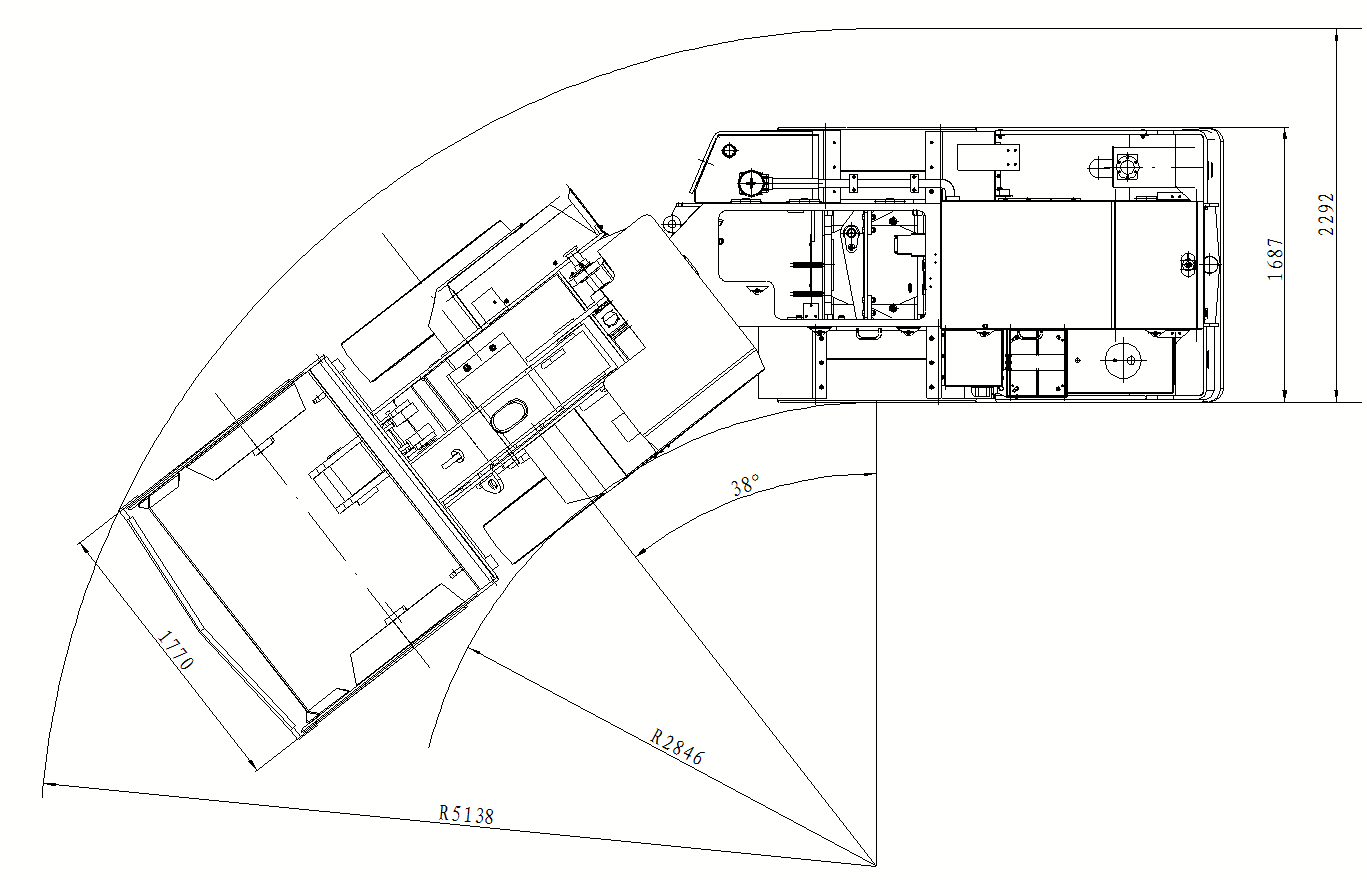

Dimension Drawing



WJ-2.5 Photo
