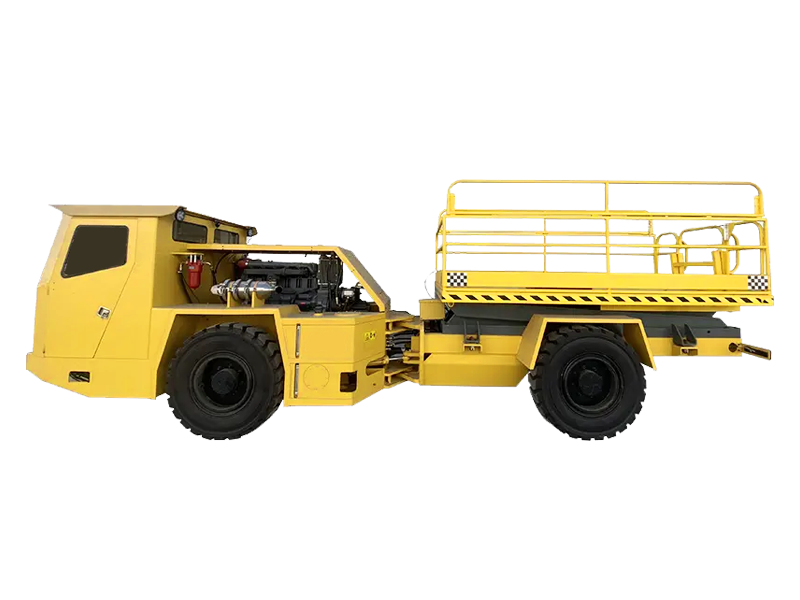

UK-6SL Underground Scissor Lift
UK-6SL Underground Scissor Lift The UK-6SL Underground Scissor Lift is high-performance lifting equipment designed for heavy-duty lifting in underground areas. DescriptionWith a lifting height of up to 3.5 meters, UK-6SL···
Category: Underground Vehicle
UK-6SL Underground Scissor Lift
The UK-6SL Underground Scissor Lift is high-performance lifting equipment designed for heavy-duty lifting in underground areas.
Description
With a lifting height of up to 3.5 meters, UK-6SL suits various applications like mining, construction, and maintenance. Its compact design enables it to fit narrow spaces, ideal for lifting heavy loads underground with limited maneuvering room.
Advantages
-The lift has a robust hydraulic system for smooth, efficient lifting, allowing precise control of heavy loads. Built to endure harsh underground conditions, it's made of corrosion, wear, and tear-resistant high-quality materials.
-Besides its good lifting capacity, the UK-6SL Scissor Lift is user-friendly. The control panel makes it easy for operators to adjust the lift's height and direction.
-Work can be carried out safely, efficiently, and comfortably from the level work deck when elevated to the optimal height. The optional remote drive system on the deck introduces new levels of efficiency to installation and assembly in underground mines.
-The FOPS and ROPS approved safety cabin offers excellent visibility and a comfortable space for the driver and passenger.
-The dashboard is user-friendly, and the new multifunctional display (MID) shows driving details (speed, RPM, temperatures, etc.) and can record data for analysis. The enclosed cabin keeps noise under 75 dB for a safe and comfortable driving experience.
In conclusion, the UK-6SL Scissor Lift is a dependable and efficient solution for underground lifting. Its compactness, powerful hydraulic system, and safety features make it a great choice for tight spaces. Whether in mining, construction, or maintenance, it can meet your lifting requirements.
Technical data
Capacity | |
Lifting Capacity | 5000kg(platform lowered) |
Lifting Capacity | 2500kg(with raised platform)³ |
Lifting Height | 3500mm |
Speed | 0~ 20 km/h |
Climing Ability(Laden) | 25% |
Dimension | |
Tramming Size (LxWxH) | 7300*1800*3500mm |
Cabin Height | 2100mm |
Platform Height | 2490mm |
Ground Clearance | 265mm |
Inner Turning Radius | 3750mm |
Outer Turning Radius | 5900mm |
Performance | |
Speed | 6.5/13/20km/h |
Gear | 3 Gears |
Engine | |
Engine | Deutz F6L914 |
Engine Power | 84kw / 2300rpm |
Engine Type | Air-Cool |
Emission | EURO II / Tier 2 |
Transmission | |
Brand | DANA |
Type | Integrated Transmission |
Axle | |
Front Axle | Dana |
Rear Axle | Dana |
Tyre | |
Tyre size | 10.00-R20 |

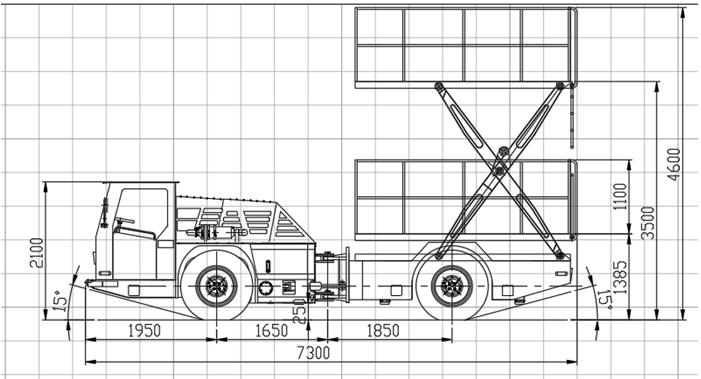

Dimension Drawing
UK-6SL Photo
