UK-5ET Underground Explosive Truck

This UK-5ET Explosive Truck is used to transport explosives to the mine. The equipment explosives box, electrical system, etc. must be explosion-proof.

Description

With a height of only 2.3 meters, UK-5ET Explosive Truck suits various applications like mining, construction. Its compact design enables it to fit narrow spaces, capacity for explosives is 5000kg.

Advantages

- The frames are articulated with 40° turning angle.
- Ergonomics Canopy.
- Fully closed cab with air conditioning.
- Low vibration level in cab.

- Combination design of parking, working & emergency brake ensures good braking performance.
- Axles are equipped differentials. Front is NO-SPIN while rear is standard.
- Door interlock (applies brakes, blocks steering and bucket/boom movement when door opens).
- Excellent visibility with a low rear hood height and larger window area.

- Automatic alarm system for oil temperature, oil pressure and electrical system.
- Auto lubrication system.

Technical data

Capacity

Load Capacity

5000kg

Climing Ability(Laden)

25%

Dimension

Tramming Size (LxWxH)

7300*1800*2300mm

Cabin Height

2100mm

Tank Height

2300mm

Ground Clearance

250mm

Inner Turning Radius

3750mm

Outer Turning Radius

5900mm

Performance

Speed

6/13/20km/h

Gear

3 Gears

Engine

Engine

Deutz FL914

Engine Power

84kw / 2300rpm

Engine Type

Air-Cool

Emission

EURO II / Tier II

Transmission

Brand

DANA

Model

1201FT20321

Axle

Front Axle

Dana

Rear Axle

Dana

Tyre

Tyre size

10.00-20

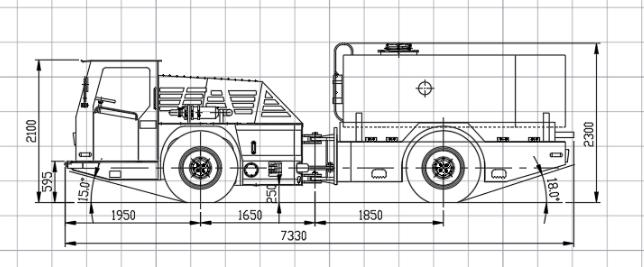

UK-5ET Dimension Drawing

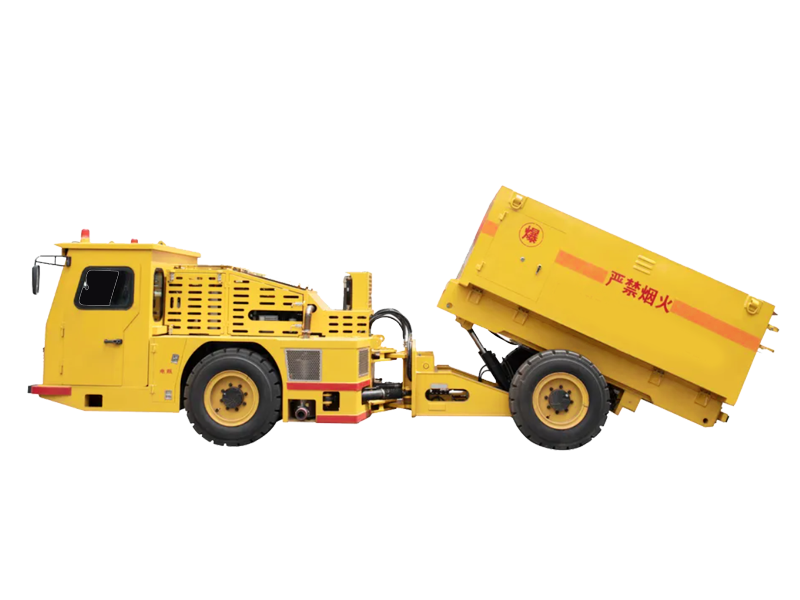

UK-5ET Photo
