UK-4OT Underground Oil Tanker

Underground Oil Tanker

UK-4OT Underground Oil TankerThis UK-4OT vehicle is is used to transport fuel, hydraulic fluid, engine oil, gear oil to underground. The tank quantity and volume can be made as per client requirement.DescriptionWith a he···

Category: Underground Vehicle

UK-4OT Underground Oil Tanker

This UK-4OT vehicle is is used to transport fuel, hydraulic fluid, engine oil, gear oil to underground. The tank quantity and volume can be made as per client requirement.

Description

With a height of only 2.3 meters, Underground Oit Tanker UK-4OT  suits various applications like mining, construction. Its compact design enables it to fit narrow spaces, capacity for 4000L liquids.

Advantages

- The frames are articulated with 40° turning angle.
- Fully closed Ergonomics cab with suspension belt seat. Low vibration level in cab.

- Combination design of parking and working brake ensures good braking performance.
- Braking is SAHR model(spring applied hydraulic release).
- Axles are equipped differentials.
- Door interlock (applies brakes, blocks steering and bucket/boom movement when door opens).

- Automatic alarm system for oil temperature, oil pressure and electrical system.
- Auto lubrication system.

Technical data

Capacity

Liquid Volume

4000L

Liquid Flow

30-55L/min

Climing Ability(Laden)

20%

Dimension

Tramming Size (LxWxH)

7330*1800*2300mm

Cabin Height

2100mm

Tank Height

2300mm

Ground Clearance

250mm

Inner Turning Radius

3050mm

Outer Turning Radius

5700mm

Performance

Speed

5/10/24km/h

Gear

3 Gears

Engine

Engine

Deutz Cummins

Engine Power

1119kw / 2100rpm

Engine Type

Air-Cool

Emission

EURO III/ Tier 3

Transmission

Brand

DANA

Model

1201FT20321

Axle

Front Axle

Dana

Rear Axle

Dana

Tyre

Tyre size

10.00-20

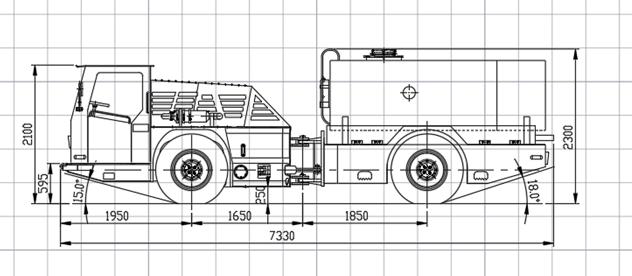

UK-4OT Dimension Drawing

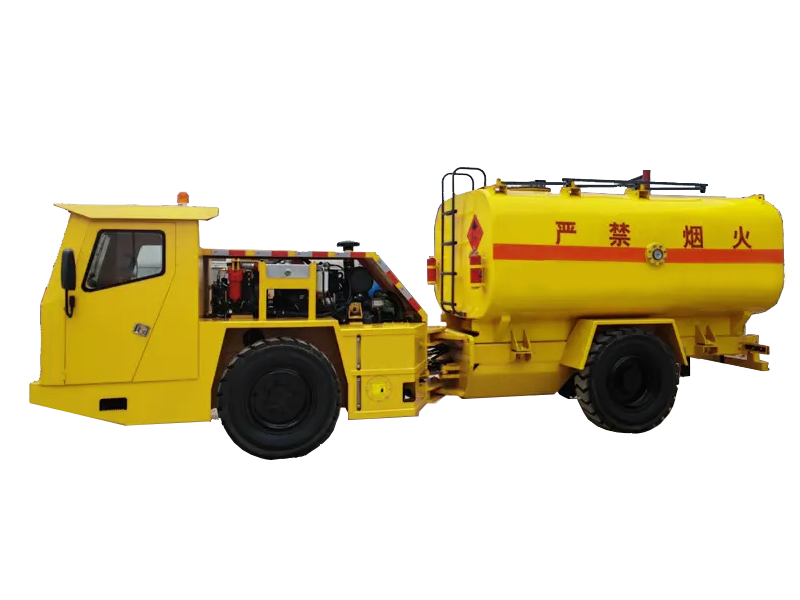

UK-4OT Photo
