UK-4CM Underground Concrete Mixer
This UK-4CM vehicle is specially designed for underground mining, there are different type, horizontal and Inclined concrete drum.
Description
With a height of only 2.9 meters, Underground Concrete Mixer UK-4CM suits various applications like mining, construction. Its compact design enables it to fit narrow spaces, capacity for horizontal type is for 2~4m3 concrete drum while the inclined type is for 5~8m3.
Advantages
- Frame bodies are articulated with 40 º steering angle for both sides.
- Ergonomics Canopy with comfortable operation.
- Fully closed cab with air conditioning.
- Rear camera to provide good view when reversing or backward operation.
- Combination design of parking brake & working brake ensure good braking performance. SAHR(spring applied hydraulic release) braking model.
Technical data
Capacity | |
Concrete Volume | 5m³ |
Plate Thickness | 5mm |
Revolution | 0~ 16 rpm |
Climing Ability(Laden) | 25% |
Dimension | |
Tramming Size (LxWxH) | 7950*2080*2850mm |
Cabin Height | 2380mm |
Mixer Height | 2850mm |
Ground Clearance | 320mm |
Inner Turning Radius | 4200mm |
Outer Turning Radius | 6720mm |
Performance | |
Speed | 5/13/26km/h |
Gear | 3 Gears |
Engine | |
Engine | Deutz TCD914L06 |
Engine Power | 130kw / 2300rpm |
Engine Type | Air-Cool |
Emission | EURO II I/ Tier 3 |
Transmission | |
Brand | DANA |
Model | RT32000/C270 |
Axle | |
Front Axle | Dana |
Rear Axle | Dana |
Tyre | |
Tyre size | 12.00-24 |

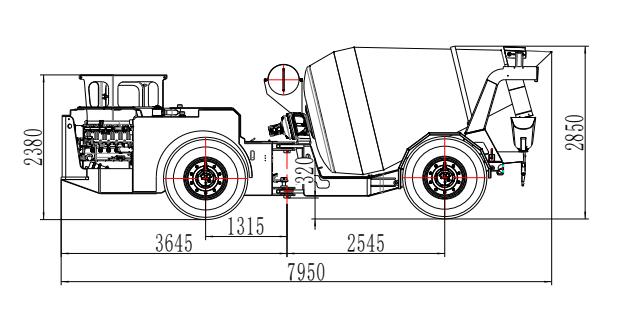

UK-4CM Dimension Drawing

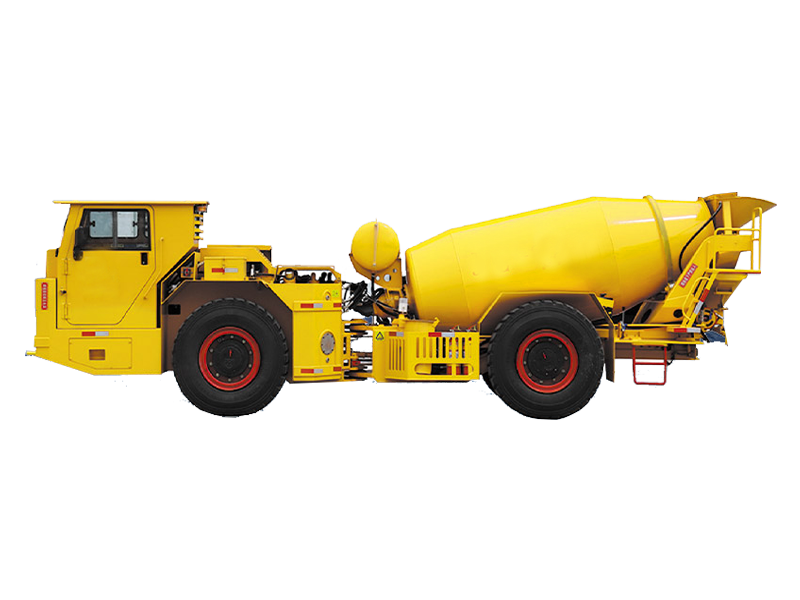

UK-4CM Photo
